| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

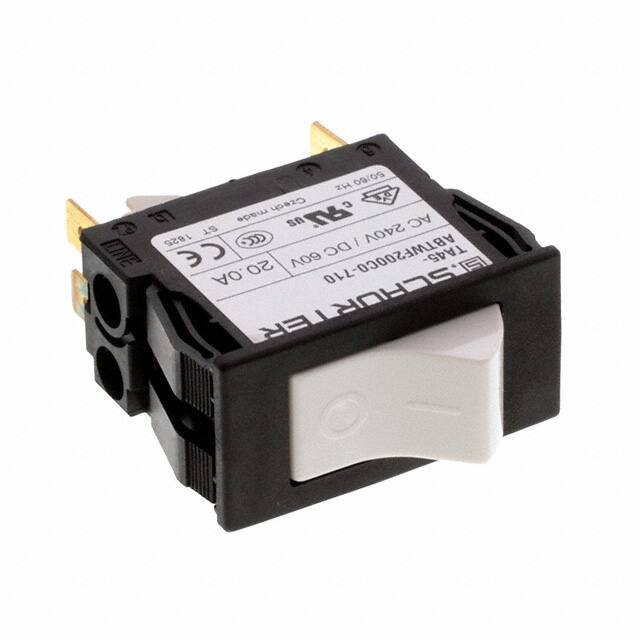

The Schurter Inc. 4430.0038 is a thermal circuit breaker with a 2-pole configuration, suitable for AC and DC applications. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range from 0.05A to 20A AC. The breaker type is thermal, and it features a rocker actuation for easy operation.
Designed for panel mounting, this circuit breaker provides a degree of protection IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. It has a mechanical lifetime of 50,000 switching cycles and meets specific overload trip requirements for both AC and DC operations. The operating temperature range is -10 °C to 55 °C.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is built to withstand vibration and shock according to IEC standards.
240 VAC and 60 VDC.
-10 °C to 55 °C.
Rocker actuation.
50,000 switching cycles.
4 kVAC.
IP40 (IP54 with cover).
2 poles.
