| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

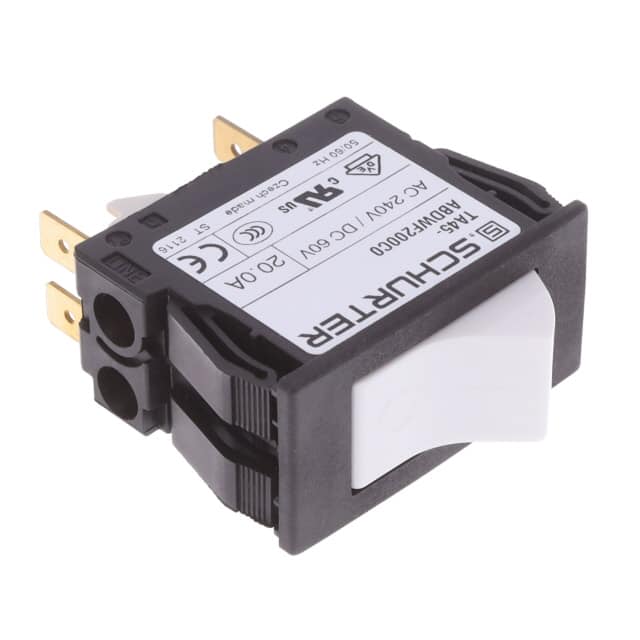

The Schurter Inc. 4430.0572 is a thermal circuit breaker featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and provides a rated current of 20A at 240VAC and 60VDC.
Key technical specifications include a conditional short circuit capacity of 1 kA at 240VAC and a short circuit capacity of 300A at 240VAC. The device offers a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C.
This circuit breaker is suitable for applications requiring reliable thermal overload protection. Its robust construction and adherence to standards like IEC 60934 and UL1077 make it a dependable choice for industrial appliances, power supplies, and power tools.
The rated voltage is 240 VAC and 60 VDC.
The rated current range is 0.05 - 20 A.
This circuit breaker has 2 poles.
It uses rocker actuation.
The allowable operation temperature is -10 °C to 55 °C.
The mechanical lifetime is 50,000 switching cycles.
