| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

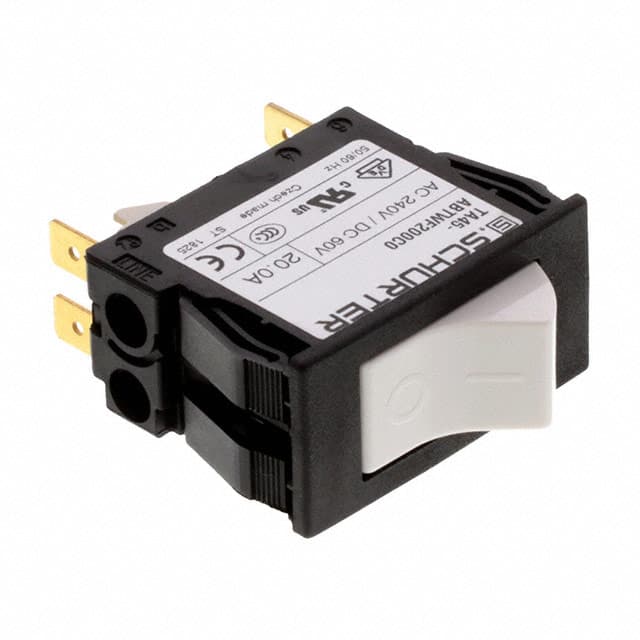

This Schurter Inc. TA45 series thermal circuit breaker, part number 4430.0035, provides reliable 2-pole thermal overload protection. It features a rocker actuation type and is designed for panel mounting.
The circuit breaker has a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC. The AC current rating ranges from 0.05 A to 20 A. It offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity Icn of up to 300A.
Environmental specifications include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The operating temperature range is -10 °C to 55 °C, with a similar storage temperature range. The device has a mechanical lifetime of 50,000 switching cycles.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment.
The rated AC voltage is 240 VAC.
The rated DC voltage is 60 VDC.
The AC current rating range is 0.05 A to 20 A.
The degree of protection on the front side is IP40.
The allowable operation temperature is -10 °C to 55 °C.
It has 2 poles.
It uses rocker actuation.
