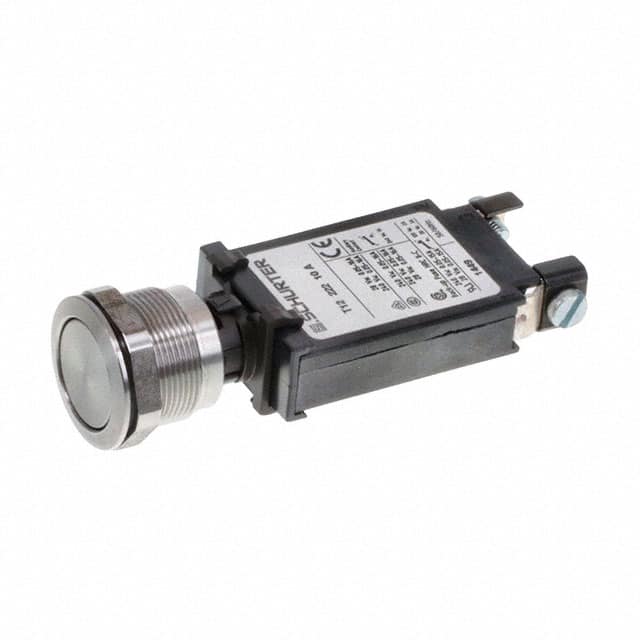

The Schurter Inc. 4410.9017 is a thermal circuit breaker designed for equipment protection. This 1-pole device offers a manual ON/OFF actuation and is suitable for panel mounting. It operates with a rated AC voltage of 240 VAC and a rated DC voltage of 28 VDC, with a current rating range from 0.05 to 15/16 A.
Key electrical specifications include a conditional short circuit capacity of 1 kA at 240 VAC, dielectric strength greater than 1.5 kV at 50 Hz, and insulation resistance exceeding 100 MΩ at 500 VDC. The breaker is built to withstand environmental conditions, with an operating temperature range of -5 °C to 60 °C and resistance to vibration and shock.
This circuit breaker is designed according to product standards such as IEC 60934, UL 1077, and GB 17701, making it suitable for various applications including power supplies, uninterruptible power supplies, power tools, and household appliances. It also complies with IEC/UL 62368-1 application standards.
The circuit breaker is rated for 240 VAC and 28 VDC.
The operating temperature range is -5°C to 60°C.
Panel mount.
IEC 60934, UL 1077, and GB 17701.
10A.
Thermal.
1 pole.
