| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Supply Voltage | |
| Voltage Rating | |
| Weight |

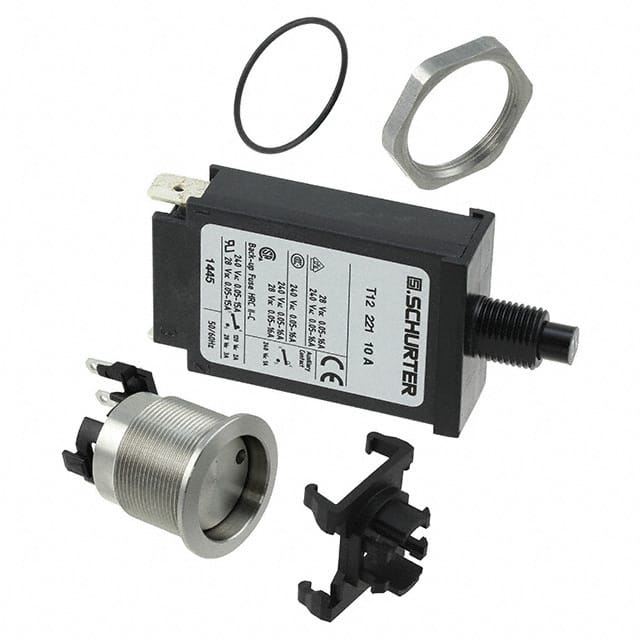

The Schurter Inc. 4410.9005 is a thermal circuit breaker with a metal actuator, suitable for panel mounting. It operates as a 1-pole device with manual ON/OFF actuation and features blue illumination. The breaker is rated for AC 240 VAC and DC 28 VDC, with a rated current range of 0.05 to 15/16 A.
Key electrical specifications include a conditional short circuit capacity of 1 kA at AC 240 V, dielectric strength greater than 1.5 kV at 50 Hz and 2.5 kV for impulse, and insulation resistance exceeding 100 MΩ at 500 VDC. Endurance is rated at a typical 5000 switching cycles for manual ON/OFF operation.
Environmental and mechanical specifications include an allowable operating temperature range of -5 °C to 60 °C, vibration resistance according to IEC 60068-2-6, and shock resistance of 60 G / 18 ms. The device offers IK07 shock protection and requires a tightening torque of 12 Nm for M19 threads and 16 Nm for M22 threads. It is designed according to product standards such as IEC 60934 and UL 1077.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It is designed for use in industrial environments and has approvals from CSA, EN, GB, IEC, and UL.
The circuit breaker is rated for 240VAC and 28VDC.
The allowable operating temperature is -5°C to 60°C.
It uses thermal tripping.
Yes, it is approved under CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
Dielectric strength is >1.5kV at 50Hz and >2.5kV impulse.
Panel mount with push-push actuation.
