| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

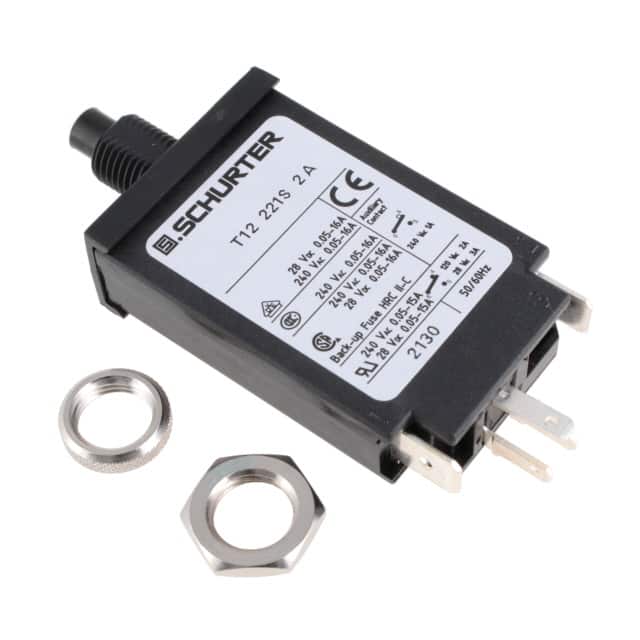

This Schurter Inc. 4410.0215 is a thermal circuit breaker with a 1-pole configuration, suitable for panel mounting. It features a 2A current rating and can handle up to 240 VAC or 28 VDC.
The circuit breaker is designed with quick connect terminals and a reset type actuator. It offers a compact design with positively trip-free release, making it suitable for various applications.
Key technical specifications include a rated current range of 0.05 - 15/16 A, conditional short circuit capacity of 1 kA, and an operating temperature range of -5 °C to 60 °C. The device also provides a degree of protection of IP40 on the front side.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It is designed according to IEC 60934 standards.
240 VAC and 28 VDC.
-5°C to 60°C.
2A.
Thermal.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
Panel mount.
Push-push.
