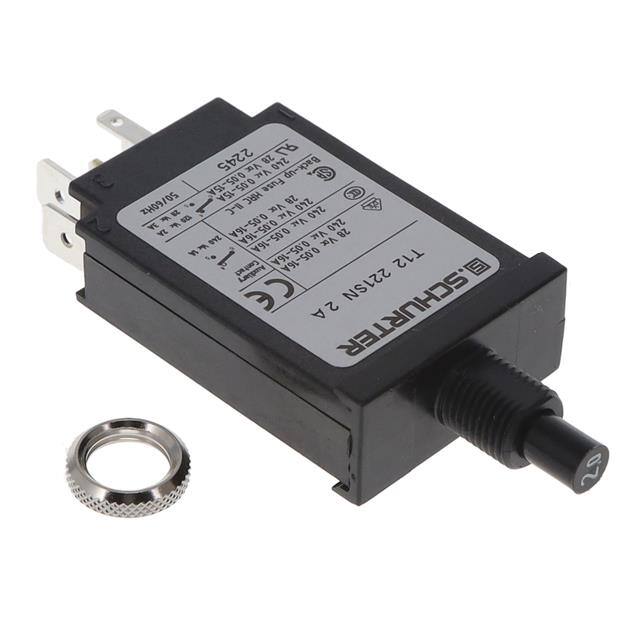

This Schurter Inc. 4410.0398 is a thermal circuit breaker with a single pole configuration. It is designed for panel mounting and features quick connect terminals for easy installation.
The breaker has a rated current of 2A and can operate at AC voltages up to 240V and DC voltages up to 28V. It offers a conditional short circuit capacity of 1 kA at 240VAC and a short circuit capacity Icn of 8 x In for currents below 7A or 200A for currents above 7A.
Key technical specifications include a degree of protection of IP40 on the front side, dielectric strength greater than 1.5 kV (50 Hz) and 2.5 kV (1.2/50 μs impulse), and insulation resistance greater than 100 MΩ at 500 VDC. The operating temperature range is -5 °C to 60 °C.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It is built with a positively trip-free release mechanism and offers different mounting possibilities.
240VAC and 28VDC.
-5°C to 60°C.
2A.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
IP40 on the front side according to IEC 60529.
Thermal.
Panel mount.
