| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

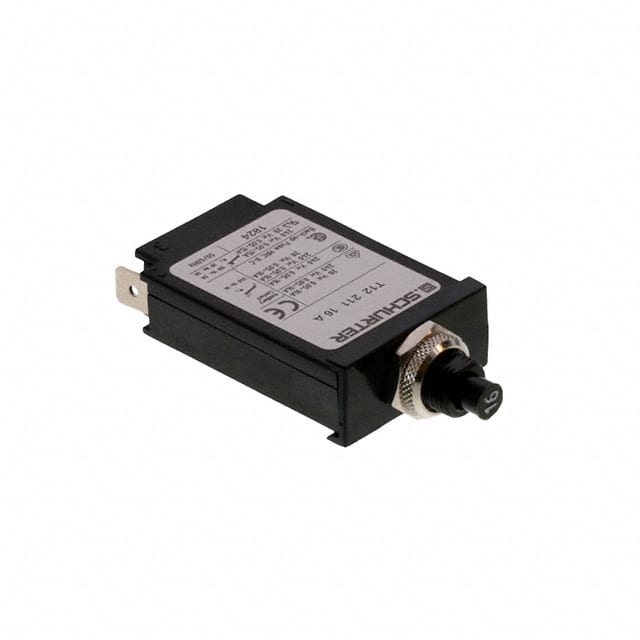

This Schurter Inc. 4410.0152 is a thermal circuit breaker with a threaded neck type and push-to-reset actuation. It is designed for panel mounting and features quick connect terminals.
The circuit breaker operates at a rated voltage of 240 VAC and 28 VDC, with a rated current range of 0.05 to 16A. It offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity Icn of 8 x In or 200 A at 240 VAC. The device has a degree of protection of IP40 on the front side.
Key electrical specifications include dielectric strength greater than 1.5 kV (50 Hz) and 2.5 kV (1.2/50 μs impulse), and insulation resistance greater than 100 MΩ at 500 VDC. Endurance is rated at a typical 5000 switching cycles and a minimum of 50 switching cycles for the reset type.
Environmental and mechanical specifications include an allowable operating temperature range of -5 °C to 60 °C. It is vibration resistant up to 10 G and shock resistant up to 100 G / 6 ms. The compact design and positively trip-free release make it suitable for various applications.
240 VAC and 28 VDC.
-5°C to 60°C.
16A.
Thermal tripping.
Panel mount.
Push to reset.
IP40 on the front side.
