| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Halogen Free | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Rated Current | |
| Voltage Rating | |
| Weight |

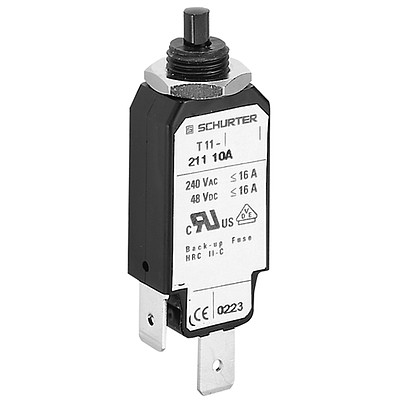

The Schurter Inc. 4400.0017 is a 1-pole thermal circuit breaker, part of the T11-211 series. It is designed for panel mounting and features a push-to-reset actuator.
This circuit breaker has a rated voltage of 240 VAC and 48 VDC, with a current rating range of 0.05 to 16 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC and meets specific short circuit capacity requirements based on the rated current.
Key electrical specifications include a degree of protection IP40, dielectric strength greater than 1.5 kV at 50 Hz and 2.5 kV for impulse, and insulation resistance greater than 100 MΩ at 500 VDC. The device is built for thermal tripping and has an endurance of typically 500 switching cycles at 2 x Ir.
Environmental considerations include an operating temperature range of -5 °C to 60 °C. The circuit breaker complies with EU RoHS directive (RoHS3 Compliant) and is halogen-free according to IEC definition. It is designed for applications in power tools, household equipment, power supplies and chargers, and industrial appliances.
-5°C to 60°C.
240 VAC and 48 VDC.
Panel mount.
Thermal.
Push to reset.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
2 kA at 240 VAC (IEC 60934 PC1). For currents below 6.5 A, Icn is 8 x In; for 6.5 A and above, Icn is 96 A.
