| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

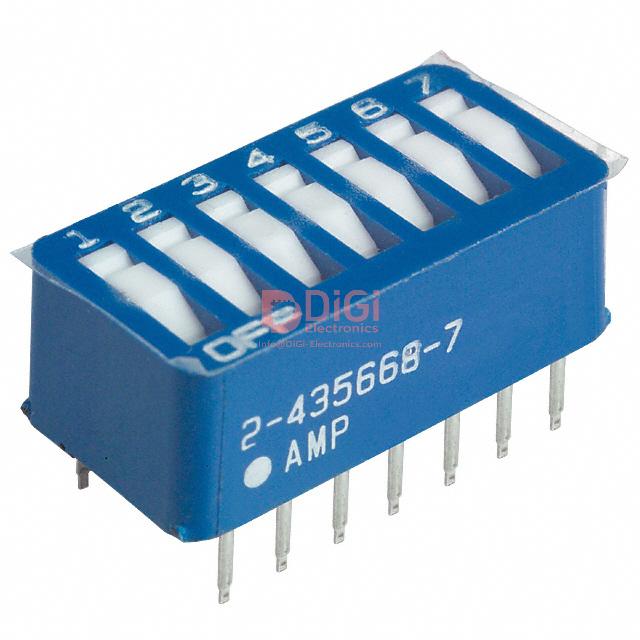

The TE Connectivity ALCOSWITCH 435668-7 is a single pole, single throw (SPST) DIP switch featuring a rocker actuator. It is designed for through-hole mounting and offers 7 positions for circuit configuration. The switch operates at a voltage rating of 5VDC and a current rating of 60mA.
Key electrical and mechanical specifications include gold-plated copper alloy contacts for reliable connections and a pitch of 2.54mm (0.100"). The height above the board is 7.37mm (0.290"). The operating temperature range is -55°C to 105°C.
This component is suitable for various electronic applications requiring manual circuit selection or configuration. Its through-hole mounting ensures a secure connection to printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 60mA.
The voltage rating is 5VDC.
It has 7 positions.
The operating temperature range is -55°C to 105°C.
It uses through-hole mounting.
The contact finish is gold.
