| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

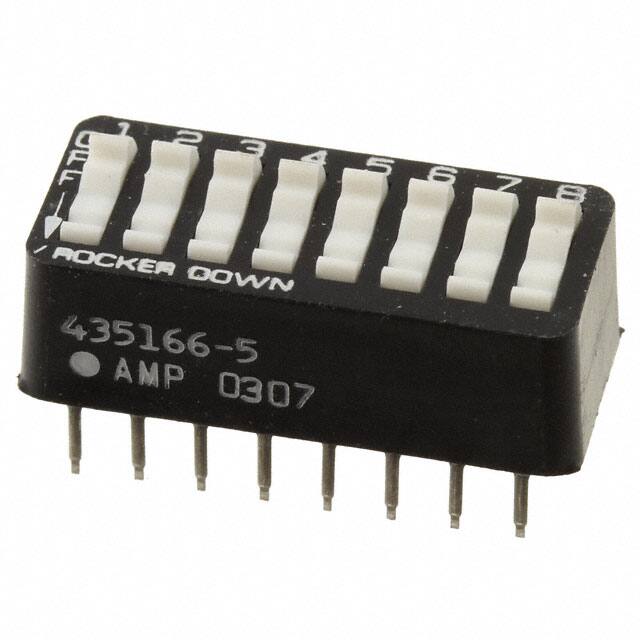

The TE Connectivity 435166-5 is a single-pole, single-throw (SPST) Rocker DIP Switch. It features a through-hole mounting type and a PC pin termination style with a gold contact finish. This switch is rated for a voltage of 24VDC and a current of 25mA, with an operating temperature range of -55°C to 105°C.
The actuator is a raised rocker type, and the switch is not washable. The contact material is copper alloy. The pitch is 2.54mm (0.100"), and it has 8 positions. The height above the board is 8.64mm (0.340").
This DIP switch is suitable for applications requiring reliable switching in a compact form factor. Its through-hole mounting ensures secure placement on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 24VDC.
The current rating is 25mA.
The operating temperature range is -55°C to 105°C.
It is mounted using the Through Hole method.
It features a Rocker actuator.
