| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
209 pcs
|
209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Contact Plating | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Halogen Free | |
| Height | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Rated Current | |
| Rated Voltage | |
| Switch Function | |
| Termination Style | |
| Withstanding Voltage |

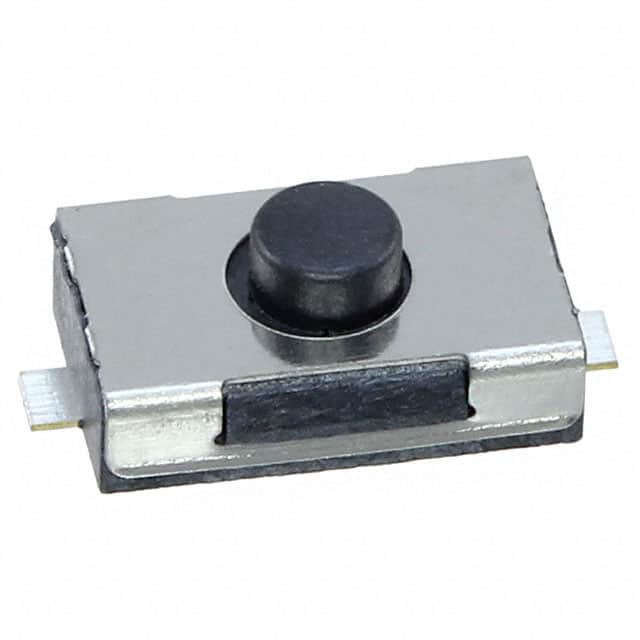

This Würth Elektronik tactile switch, part number 434121025816, is designed for general electronic equipment. It features a SPST-NO circuit configuration and a standard actuator type with top actuation.
The switch has a contact rating of 0.05A at 12VDC and an initial contact resistance of 100 mΩ max. Mechanical specifications include an operating force of 160gf and a stroke of 0.25mm. The electrical life is rated for 50,000 cycles at 50mA/12VDC.
Designed for surface mounting, this switch has an outline dimension of 6.00mm x 3.80mm and an actuator height off PCB of 2.50mm. The operating temperature range is -40°C to 85°C. Materials include LCP for the actuator and frame, with stainless steel for the cover and contacts plated in silver.
Environmental compliance includes RoHS3 compliance and Halogen Free certification. The Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 12 V (DC).
The operating temperature range is -40°C to 85°C.
This part is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The electrical life is rated for 50,000 Cycles.
The contact rating is 0.05A @ 12VDC.
The outline dimensions are 6.00mm x 3.80mm.
