| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Temperature | |
| Voltage Rating |

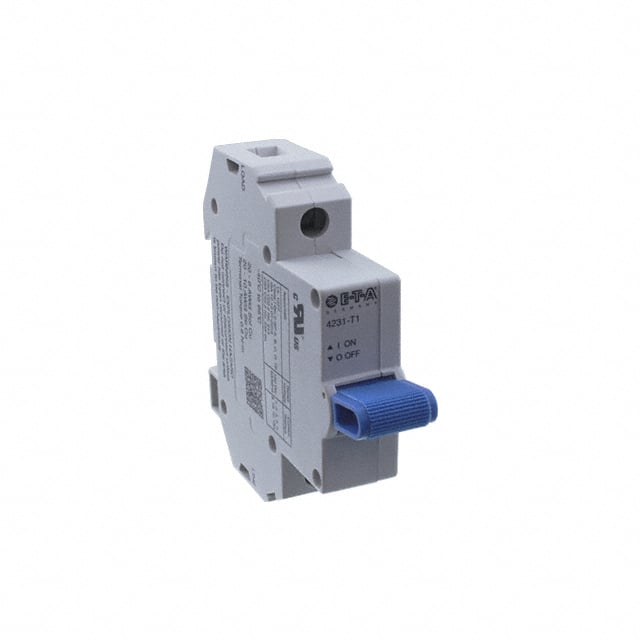

This E-T-A 4231-T110-K0F2H-3A is a hydraulic-magnetic miniature circuit breaker (MCB) designed for reliable protection in demanding environments. It features a single pole configuration and a 3A current rating, suitable for 120VAC or 50VDC circuits.
The breaker is compliant with UL1077, CSA22.2, and UL Class I Division 2 standards, making it suitable for hazardous locations. It mounts directly onto a T1 DIN rail for easy installation.
Key technical specifications include an interrupting capacity of 1000A, an operating temperature range of -40°C to 65°C, and an IP20 degree of protection. The hydraulic-magnetic trip mechanism ensures consistent performance across its operating temperature range.
Typical applications include oil & gas, agricultural processing, and pulp & paper industries where protection against flammable liquids, gases, vapors, or combustible dust is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
It can be used with 120VAC or 50VDC.
It is designed for DIN rail mounting.
It is approved by CSA C22.2 No 213, UL1077, and UL Class I Div 2.
The operating temperature range is -40°C to 65°C.
The degree of protection is IP20.
