| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

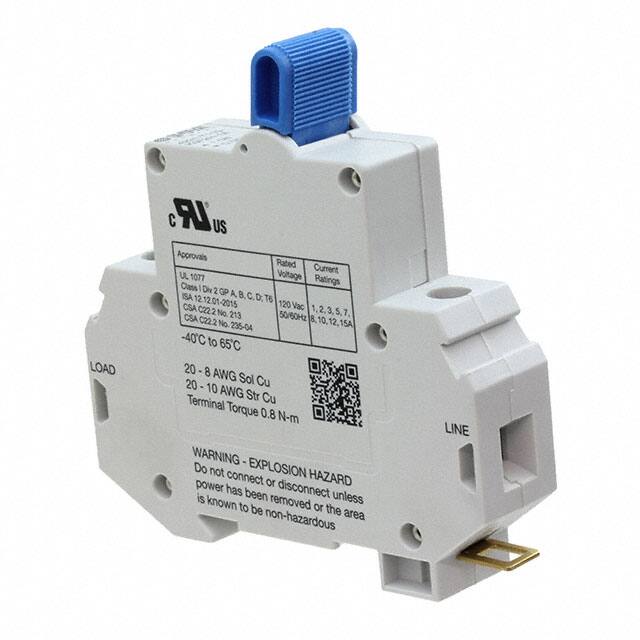

This E-T-A 4231-T110-K0F2H-1A is a hydraulic-magnetic miniature circuit breaker (MCB) designed for reliable circuit protection. It is a single-pole device with a current rating of 1A and a voltage rating of 120VAC.
The breaker features DIN rail mounting for easy installation in control panels and enclosures. It conforms to UL1077 and CSA C22.2 standards, and is suitable for Class I Division 2 hazardous locations. The characteristic curve is F2, indicating an AC short-time delay.
Key technical data includes an interrupting capacity of 1000A (AC and DC), an operating temperature range of -40°C to 65°C, and an IP20 degree of protection. The actuator type is a lever.
Typical applications for this type of circuit breaker include environments with flammable liquids, gases, vapors, or combustible dust, such as oil and gas operations, agricultural processing, and pulp and paper production.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The voltage rating is 120VAC.
It is designed for DIN rail mounting.
Approval agencies include CSA C22.2 No 213, UL1077, and UL Class I Div 2.
The operating temperature range is -40°C to 65°C.
The interrupting capacity is 1000A.
