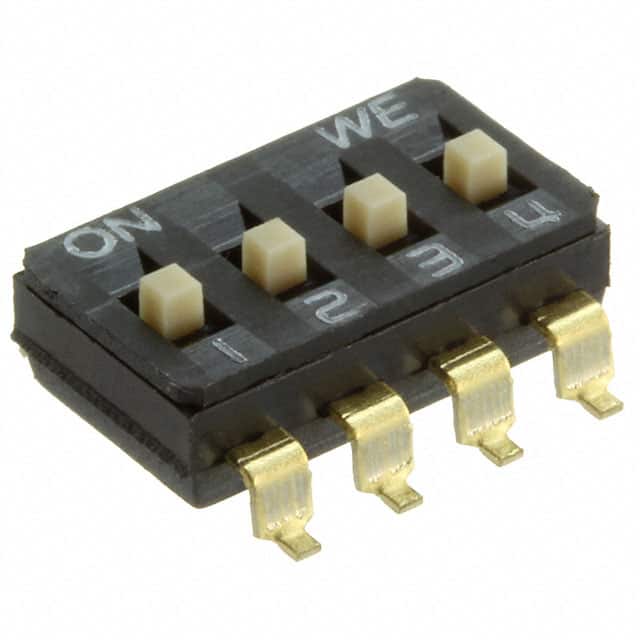

418121270804 The Würth Elektronik 418121270804 is an SMT DIP switch with a SPST circuit, designed for surface mounting. It offers a switching current rating of 25mA at 24VDC.
Mfr Part #:

418121270804

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 418121270804 is an SMT DIP switch with a SPST circuit, designed for surface mounting. It offers a switching current rating of 25mA at 24VDC.
✓ Total Stock: 24 pcs
$ Price Range: $0.75

418121270804 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

418121270804 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Insulation Resistance
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

418121270804 Description

Short technical summary and product information.

This Würth Elektronik 418121270804 is a compact SMT DIP switch featuring a Single Pole Single Throw (SPST) configuration. It is designed for surface mounting with a gull wing termination style and a 2.54mm pitch.



The switch is rated for a switching current of 25mA at 24VDC and a non-switching current of 100mA at 50VDC. It has a contact resistance of 50mΩ initially and 100mΩ after life testing. The insulation resistance is a minimum of 100MΩ at 500VDC, with a dielectric strength of 500VAC for one minute.



Operating within a temperature range of -40°C to 85°C, this DIP switch has a mechanical and electrical life of 2000 cycles. The actuator is a raised slide type, and the component is constructed with PA9T cover and base, PA46 actuator, and gold-plated contacts and terminals. It is suitable for reflow soldering processes.



Environmental compliance includes RoHS3, MSL 1, and REACH unaffected status. The component is designed for general electronic equipment usage.

418121270804 Quick Information

Product Type: DIP Switch
Series: WS-DISV
Canonical Name: Würth Elektronik WS-DISV DIP Switch
Subcategory: SMT Dip Switch

418121270804 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

418121270804 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

418121270804 Features

  • SMT DIP switch with SPST circuit.
  • Rated for 25mA switching current.
  • Operates at 24VDC.
  • Surface mount with gull wing termination.
  • Gold plated contacts and terminals.

418121270804 Applications

  • Suitable for general electronic equipment switching.
  • Used in control panels for circuit selection.
  • Ideal for compact device applications requiring small switches.
  • Applicable in automation and instrumentation systems.

418121270804 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the contact rating for switching?

The contact rating for switching is 25mA at 24VDC.

What is the operating voltage?

The operating voltage rating is 24VDC.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the package type?

The package type is SMD.

What is the pitch of this DIP switch?

The pitch is 2.54mm.

What is the number of positions?

This DIP switch has 4 positions.

What is the RoHS status?

The RoHS status is RoHS3 Compliant.
