| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

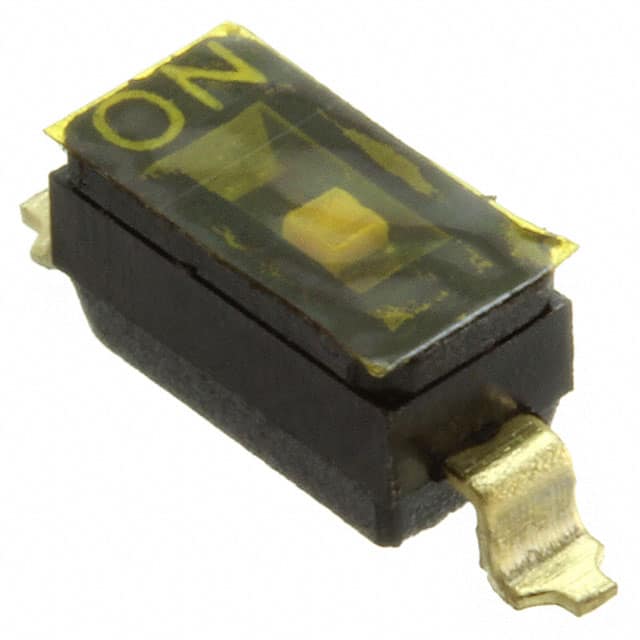

This Würth Elektronik 418121160801 is a single-pole, single-throw (SPST) slide DIP switch designed for general electronic equipment. It operates with a contact rating of 25mA at 24VDC and a non-switching rating of 100mA at 50VDC.
The switch features gold-plated contacts and gull wing termination for surface mounting. Its compact dimensions and tape seal make it suitable for automated assembly processes. The operating temperature range is -40°C to 85°C.
Key specifications include a pitch of 2.54mm (0.100"), a height above board of 3.50mm, and a mechanical and electrical life of 2000 cycles. The actuator level is flush and recessed, with a standard slide actuator type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 24VDC.
The current rating is 25mA.
The operating temperature range is -40°C to 85°C.
It uses surface mount.
Yes, it is washable.
