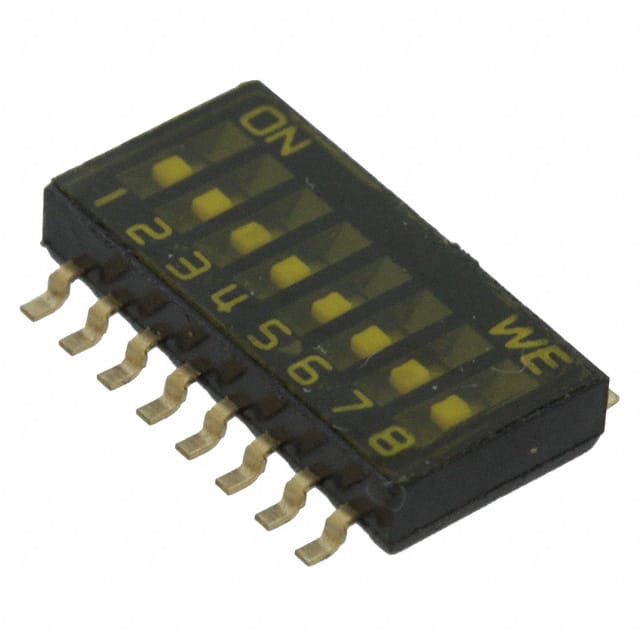

416131160808 The Würth Elektronik 416131160808 is an SPST DIP Switch designed for surface mounting. It features a 1.27mm pitch and a tape seal.
Mfr Part #:

416131160808

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 416131160808 is an SPST DIP Switch designed for surface mounting. It features a 1.27mm pitch and a tape seal.
✓ Total Stock: 97 pcs
$ Price Range: $0.75

416131160808 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

416131160808 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

416131160808 Description

Short technical summary and product information.

The Würth Elektronik 416131160808 is a compact SMT DIP switch with a flat actuator and top tape seal. It operates at a voltage rating of 24VDC and a current rating of 25mA, with a single-pole, single-throw (SPST) circuit.



This switch features gold-plated contacts and terminals for reliable connections. It is designed for surface mounting with a gull wing termination style and a pitch of 1.27mm. The actuator is a standard slide type, with flush and recessed options available, and the unit is washable.



With an operating temperature range of -40°C to 85°C, this DIP switch is suitable for general electronic equipment. It has a mechanical life of at least 2000 cycles and an electrical life of 1000 cycles at its rated conditions. The height above the board is 2.50mm.

416131160808 Quick Information

Product Type: DIP Switch
Canonical Name: Würth Elektronik 416131160808 SPST DIP Switch
Subcategory: SMT DIP Switch

416131160808 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

416131160808 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

416131160808 Features

  • SPST circuit for simple switching.
  • Surface mount with gull wing termination.
  • 1.27mm pitch for compact designs.
  • Gold plated contacts for reliability.
  • Washable design for cleaning flexibility.

416131160808 Applications

  • Ideal for general electronic equipment.
  • Suitable for automated assembly processes.
  • Used in compact electronic devices.
  • Requires reliable manual configuration.

416131160808 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the 416131160808 DIP Switch?

The voltage rating is 24VDC.

What is the current rating of the 416131160808 DIP Switch?

The current rating is 25mA.

What is the operating temperature range for this DIP Switch?

The operating temperature range is -40°C to 85°C.

What type of mounting is used for the 416131160808?

It is a Surface Mount type.

Does the 416131160808 feature RoHS compliance?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
