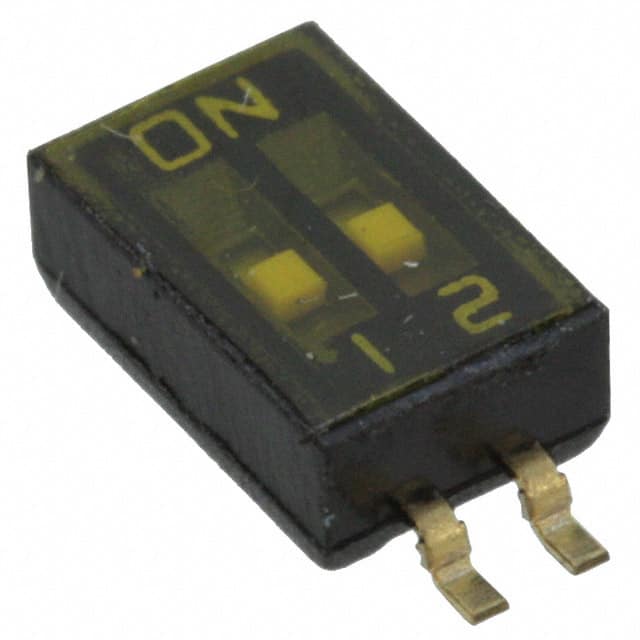

416131160802 The Würth Elektronik 416131160802 is a Single Pole Single Throw (SPST) slide DIP switch designed for surface mounting. It features a tape seal and is washable.
Mfr Part #:

416131160802

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 416131160802 is a Single Pole Single Throw (SPST) slide DIP switch designed for surface mounting. It features a tape seal and is washable.
✓ Total Stock: 5 pcs
$ Price Range: $0.75

416131160802 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

416131160802 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

416131160802 Description

Short technical summary and product information.

This Würth Elektronik 416131160802 is a compact SMT slide DIP switch with a pitch of 1.27mm. It offers a Single Pole Single Throw (SPST) configuration and is rated for 25mA at 24VDC.



The switch is designed for surface mounting with gull wing termination and has a height of 2.50mm above the board. It features a flat, recessed actuator and a tape seal for protection. The operating temperature range is -40°C to +85°C, and the component is washable.



Key electrical specifications include an initial contact resistance of 100mΩ max. and an insulation resistance of min. 100MΩ at 500VDC. The mechanical life is rated for a minimum of 2000 cycles, with an electrical life of 1000 cycles at 25mA/24VDC. The contact finish is gold plated.



This component is suitable for general electronic equipment applications where space-saving and reliable switching are required.

416131160802 Quick Information

Product Type: DIP Switch
Canonical Name: Würth Elektronik 416131160802 SPST Slide DIP Switch
Subcategory: SMT DIP Switch

416131160802 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

416131160802 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

416131160802 Features

  • Single Pole Single Throw (SPST) circuit.
  • Surface mount with gull wing termination.
  • Tape sealed and washable design.
  • Rated for 24VDC and 25mA.
  • 1.27mm pitch for compact designs.

416131160802 Applications

  • Ideal for compact electronic devices.
  • Suitable for automated assembly processes.
  • Used in general electronic equipment.
  • Provides reliable on/off switching.

416131160802 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for this DIP switch?

The operating voltage is 24VDC.

What is the current rating of the Würth Elektronik 416131160802?

The current rating is 25mA.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to +85°C.

Is this DIP switch washable?

Yes, this DIP switch is washable.
