| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

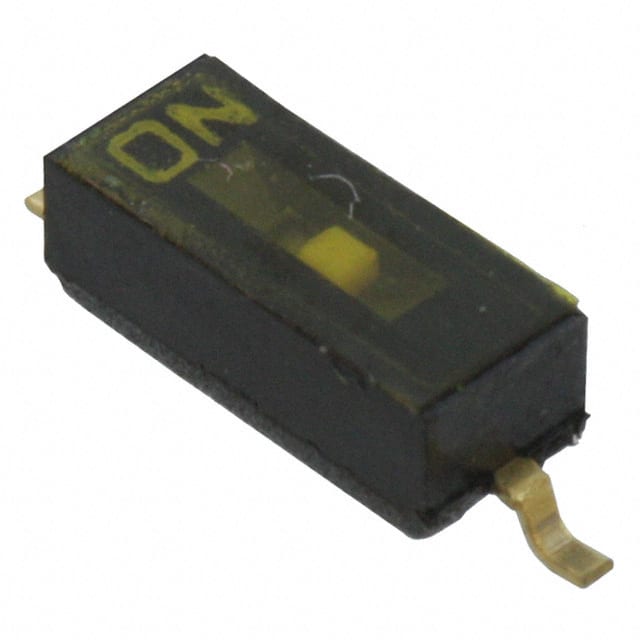

The Würth Elektronik 416131160801 is a compact SMT DIP switch from the WS-DISV series, featuring a flat actuator with top tape sealing. It is designed for surface mount applications with a gull wing termination style and a pitch of 1.27mm.
This SPST switch is rated for 25mA at 24VDC and has a non-switching rating of 100mA at 50VDC. It boasts gold-plated contacts and terminals, ensuring reliable performance. The operating temperature range is -40°C to 85°C, and it is specified as washable.
Key mechanical specifications include an operation force of 500g max, a mechanical life of at least 2000 cycles, and an electrical life of 1000 cycles at its rated switching current and voltage. The height above the board is 2.50mm.
This component is suitable for general electronic equipment where space-saving and reliable switching are required. Its tape-sealed design aids in automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating for switching is 25mA at 24VDC, and for non-switching, it is 100mA at 50VDC.
The operating temperature range is -40°C to 85°C.
The pitch is 1.27mm.
Yes, this DIP switch is washable.
The RoHS status is RoHS3 Compliant.
