| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

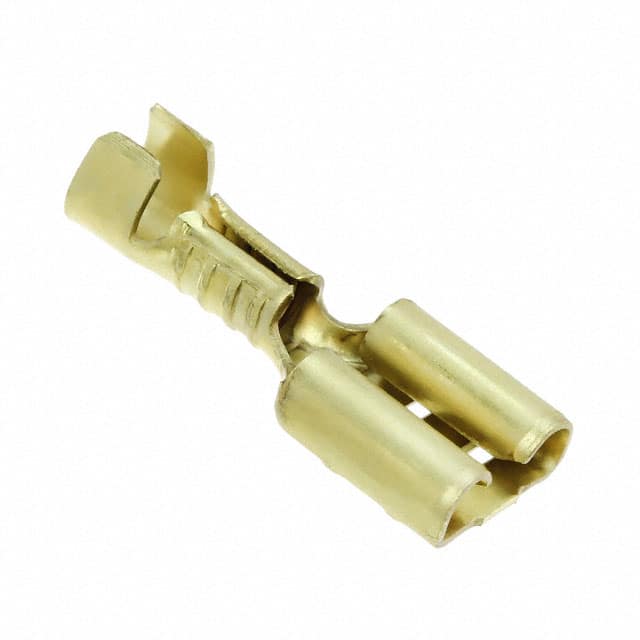

The TE Connectivity 41445-1 is a non-insulated female quick disconnect terminal, also known as a quick connect receptacle. It is designed for use with 16-18 AWG wire and features a standard 0.250 inch (6.35 mm) tab width with a 0.032 inch (0.81 mm) tab thickness. The contact is made of brass and terminated via crimp, ensuring a reliable mechanical and electrical connection. This terminal is free hanging (in-line) mounting type, making it suitable for wire-to-tab connections in a variety of applications such as power distribution, automotive wiring, and appliance assemblies. The overall length is 20.45 mm (0.805 inches). As a non-insulated part, it requires additional insulation or sleeving if needed for the application. No specific electrical ratings are provided, so the user should verify suitability based on the tab and wire gauge standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.33 | $0.33 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-18 AWG.
0.250 inch (6.35 mm).
Free hanging (in-line).
No, it is non-insulated.
Brass.
Crimp.
20.45 mm (0.805 inches).
