| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

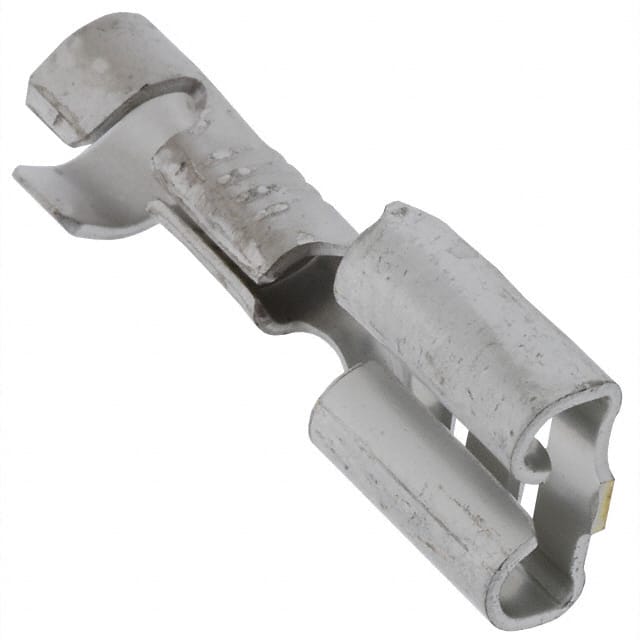

The TE Connectivity 41729 is a standard female quick connect receptacle designed for 16-18 AWG wire. It features a 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, and 0.305" (7.75mm) tab length, making it compatible with common male quick disconnect tabs. The overall length is 20.45mm (0.805").
This non-insulated terminal uses a crimp termination method for secure wire attachment. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The free hanging (in-line) mounting type allows for flexible installation in wire harnesses and panel applications.
Typical applications include power distribution, automotive wiring, appliance connections, and industrial control systems where reliable quick-disconnect connections are required. The 16-18 AWG wire range accommodates medium-gauge wiring common in many electrical assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.30 | $0.30 |
| 50+ | $0.28 | $0.28 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.25 | $0.25 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.23 | $0.23 |
| 3,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 41729 accepts 16-18 AWG wire.
The tab width is 0.250" (6.35mm).
No, it is non-insulated.
It uses crimp termination.
The contact is brass with a tin finish.
Free hanging (in-line) mounting.
