| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 630 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Pitch (Lead Spacing) | |
| Wire Gauge | |
| Wire Type |

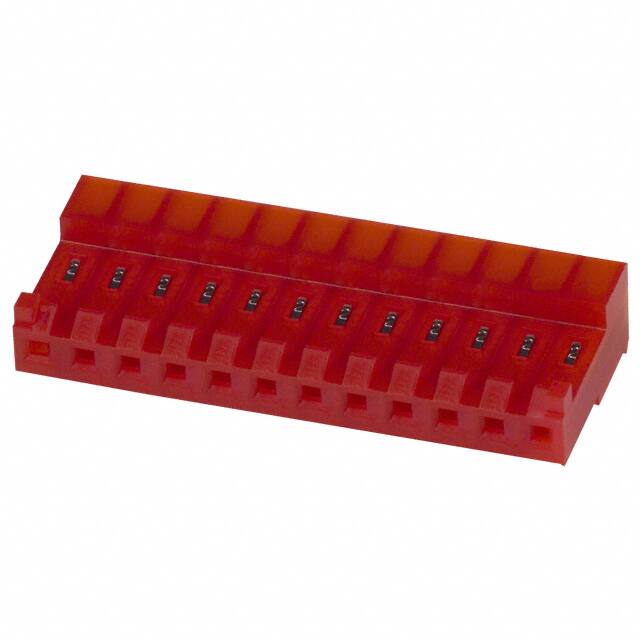

The TE Connectivity 4-643819-2 is a 12-position rectangular receptacle from the MTA-156 series designed for discrete or ribbon cable applications. It features a single row of female socket contacts with a tin finish (80.0µin / 2.03µm) and accepts 22 AWG wire. The connector uses IDC (Insulation Displacement Connection) termination, enabling quick and reliable wire attachment without stripping. It is a free hanging (in-line) connector with a locking ramp fastening system for secure mating. The red housing supports polarized mating and includes a closed end with a polarizing key to ensure correct orientation. The contact pitch is 3.96mm (0.156 inches), suitable for wire-to-board or wire-to-wire interconnects in consumer, industrial, and automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
| 10+ | $1.30 | $1.30 |
| 25+ | $1.22 | $1.22 |
| 50+ | $1.16 | $1.16 |
| 100+ | $1.10 | $1.10 |
| 250+ | $1.04 | $1.04 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.94 | $0.94 |
| 2,500+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions in a single row.
22 AWG discrete or ribbon cable.
Tin finish, 80.0µin (2.03µm).
Free hanging (in-line) mounting with IDC termination.
3.96mm (0.156 inches).
