| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
435 pcs
|
435 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage Rating |

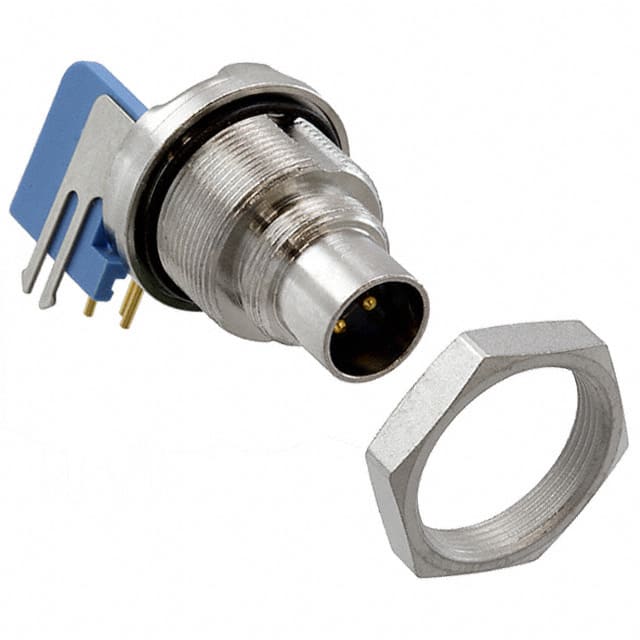

The TE Connectivity 4-1437719-8 is a circular connector assembly designed for reliable signal and power connections in demanding environments. This plug features 4 male pin contacts with solder termination, making it suitable for permanent wiring applications.
The connector offers a panel mount, through-hole, right-angle mounting configuration with a bulkhead feature for secure installation. The threaded fastening type ensures a robust mechanical connection, while the keyed orientation prevents mismating. The metal shell is made of brass with a Tribor finish, providing durability and corrosion resistance.
Electrically, the connector is rated for 3A current and 60VAC, with an operating temperature range of -40°C to 85°C. It is fully shielded to protect against electromagnetic interference and carries an IP65 ingress protection rating, meaning it is dust-tight and protected against water jets. The material flammability rating is UL94 V-2.
Additional features include a board lock for secure PCB attachment. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $42.91 | $42.91 |
| 10+ | $36.47 | $36.47 |
| 25+ | $34.19 | $34.19 |
| 50+ | $32.56 | $32.56 |
| 100+ | $31.01 | $31.01 |
| 250+ | $29.07 | $29.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions.
The current rating is 3A.
The voltage rating is 60VAC.
The connector uses panel mount, through-hole, right angle mounting with a bulkhead feature.
The connector has an IP65 rating, meaning it is dust-tight and water-resistant.
The operating temperature range is -40°C to 85°C.
Yes, the connector is shielded.
