3VA9474-0JJ23
Siemens
The Siemens 3VA9474-0JJ23 is a wire connector accessory designed for 3VA5/6 circuit breakers. It supports a wide range of conductor sizes and is RoHS3 compliant.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

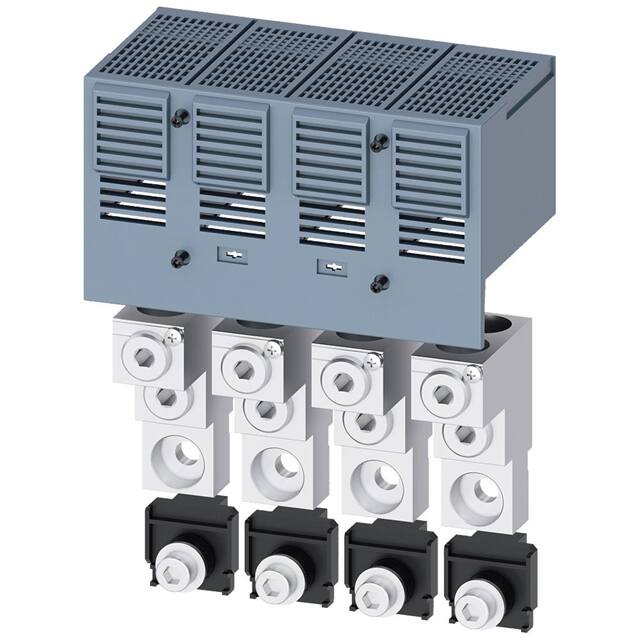

The Siemens 3VA9474-0JL23 is a wire connector accessory, part of the SENTRON product line. This circular conductor terminal is designed for use with 3VA5/6 400/600 circuit breakers.
This connector is suitable for copper cables, both stranded and finely stranded, with a minimum cross-section of 2/0 AWG and a maximum of 600 kcmil. The required stripped length for IEC connections is 31 to 58.5 mm, and for UL connections, it is 1.2 to 2.3 inches. The maximum permissible temperature for connectable conductors according to UL is 90 °C.
Installation involves a tightening torque of 375 lb-in for both stranded and finely stranded copper cables ranging from 2/0 to 600 kcmil. The terminal designation is TC2.4.
This accessory is classified under RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions.
The maximum conductor cross-section for copper cable, both stranded and finely stranded, is 600 kcmil.
The minimum conductor cross-section for copper cable, both stranded and finely stranded, is 2/0 AWG.
The stripped length for IEC connections is 31 to 58.5 mm.
The maximum permissible temperature for connectable conductors according to UL is 90 °C.
The tightening torque for both stranded and finely stranded copper cables is 375 lb-in.
