3VA9474-0JJ23
Siemens
The Siemens 3VA9474-0JJ23 is a wire connector accessory designed for 3VA5/6 circuit breakers. It supports a wide range of conductor sizes and is RoHS3 compliant.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

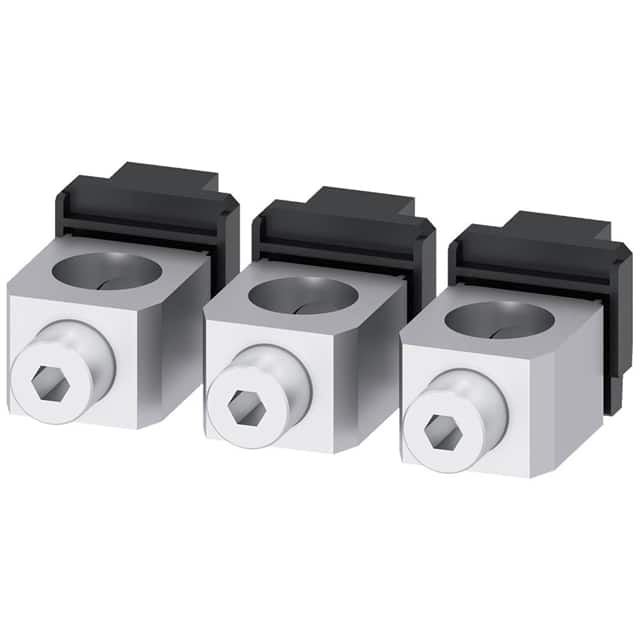

This Siemens 3VA9373-0JD13 is a wire connector accessory, specifically a circular conductor terminal, designed for use with 3VA5/6 series circuit breakers rated for 400/600A.
It facilitates connections for copper cables, supporting both stranded and finely stranded conductors. The minimum connectable conductor cross-section is 1 AWG, and the maximum is 600 kcmil. The permissible temperature for connectable conductors according to UL 486A-486B is 90°C. The required stripped length for IEC connections is 28 mm, while for UL connections it is 1.1 inches.
Tightening torque specifications are provided for both stranded and finely stranded copper cables ranging from 1 AWG to 600 kcmil, with a recommended torque of 500 lb-in. The terminal designation is TC1.5.
This accessory is supplied in carton packaging.
TC1.5.
28 mm per IEC, 1.1 in per UL.
90°C according to UL 486A-486B.
Stranded and finely stranded copper from 1 AWG to 600 kcmil.
500 lb-in for stranded and finely stranded copper in the range 1 AWG to 600 kcmil.
Carton.
