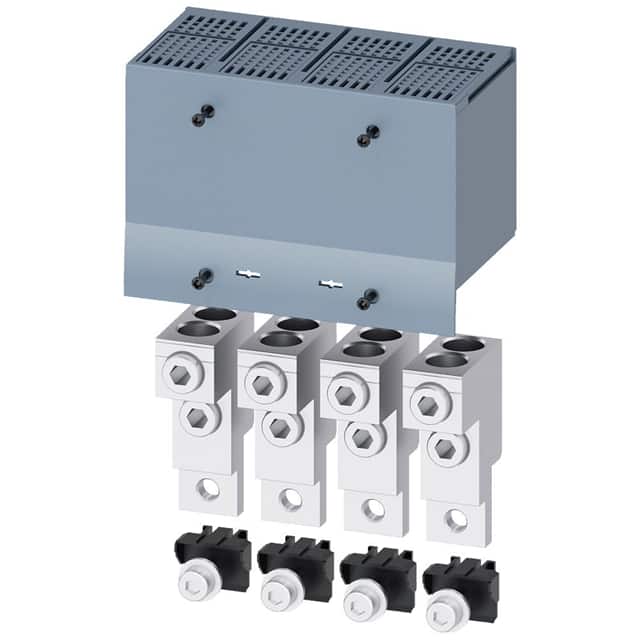

3VA9234-0JJ22 The Siemens 3VA9234-0JJ22 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It facilitates connections for copper and aluminum conductors.
Mfr Part #:

3VA9234-0JJ22

Mfr Name: Siemens
Siemens
The Siemens 3VA9234-0JJ22 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It facilitates connections for copper and aluminum conductors.
Stock on Request

3VA9234-0JJ22 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9234-0JJ22 Description

Short technical summary and product information.

This Siemens 3VA9234-0JJ22 is a wire connector accessory, also referred to as a terminal block, specifically designed for compatibility with the 3VA5 250 series circuit breakers. It is engineered to provide secure connections for both copper and aluminum conductors.



The connector supports a wide range of conductor sizes, accommodating stranded and finely stranded copper or aluminum cables from a minimum of 4 AWG up to 300 kcmil according to UL standards. For IEC connections, it supports copper and aluminum stranded conductors ranging from 25 mm² to 150 mm².



Installation involves stripping the conductor to a specified length, between 1.0 to 2.0 inches for UL or 26 to 51 mm for IEC. The tightening torque for copper cables is specified as 275 lb-in for UL connections and 31.1 Nm for IEC connections, ensuring a reliable electrical contact. The permissible temperature for the connectable conductor, according to UL 486A-486B, is 75 °C.

3VA9234-0JJ22 Quick Information

Product Type: Wire Connector
Series: 3VA5
Canonical Name: Siemens 3VA9234-0JJ22 Wire Connector
Subcategory: Terminal Block

3VA9234-0JJ22 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9234-0JJ22 Features

  • Wire connector accessory for 3VA5 250 breakers.
  • Supports copper and aluminum conductors.
  • Wide conductor size range: 4 AWG to 300 kcmil.
  • IEC conductor range: 25 mm² to 150 mm².
  • UL conductor temperature rating: 75 °C.

3VA9234-0JJ22 Applications

  • Used with Siemens 3VA5 250 circuit breakers.
  • Facilitates secure conductor connections.
  • Suitable for industrial control panels.
  • Ensures reliable electrical connections.

3VA9234-0JJ22 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the Siemens 3VA9234-0JJ22 accessory?

The Siemens 3VA9234-0JJ22 is a wire connector accessory, also known as a terminal block, designed for use with 3VA5 250 circuit breakers.

What conductor sizes does the 3VA9234-0JJ22 support?

According to UL standards, it supports stranded and finely stranded copper and aluminum conductors from 4 AWG to 300 kcmil. Per IEC standards, it supports stranded copper and aluminum conductors from 25 mm² to 150 mm².

What is the required stripped length for conductors?

The stripped length is 1.0 to 2.0 inches for UL connections and 26 to 51 mm for IEC connections.

What is the tightening torque specification for the 3VA9234-0JJ22?

For UL connections, the tightening torque is 275 lb-in for stranded and finely stranded conductors. For IEC connections, it is 31.1 Nm for both stranded and finely stranded conductors.

What is the permissible temperature for the connectable conductor?

The permissible temperature for the connectable conductor, according to UL 486A-486B, is 75 °C.
