3VA9233-0JB12
Siemens
The Siemens 3VA9233-0JB12 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It offers versatile conductor size compatibility.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| SVHC Present |

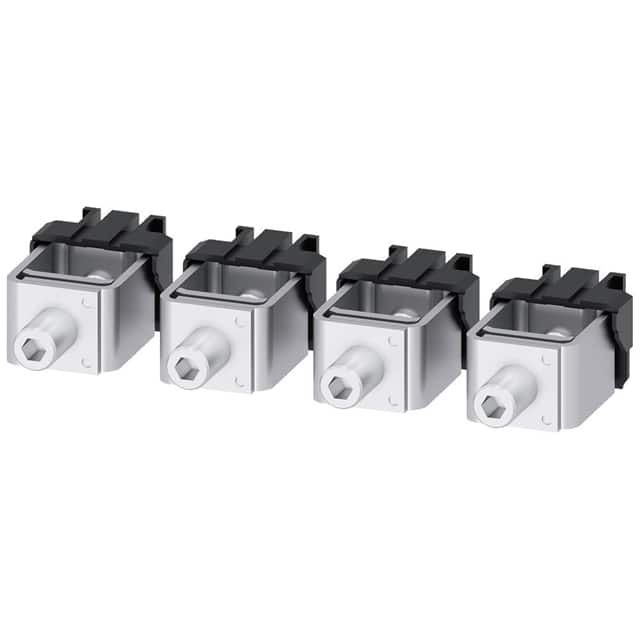

This Siemens 3VA9234-0JA11 is a box terminal accessory, part of the SENTRON product line. It is specifically designed for use with the 3VA5 250 circuit breaker series.
The terminal block supports connections according to both IEC and UL standards. For IEC connections, it accommodates copper cable with a minimum stranded cross-section of 6 mm² and a maximum of 120 mm², with a stripped length of 19 mm. Tightening torques for IEC connections range from 6 Nm to 10 Nm depending on the cable type and size.
Under UL standards, the accessory is suitable for copper cable, with solid conductors ranging from a minimum of 10 AWG to a maximum of 10 AWG. For stranded and finely stranded conductors, the range is from a minimum of 10 AWG to a maximum of 3/0 AWG. The stripped length for UL connections is 0.75 inches, with tightening torques from 105 lb-in to 140 lb-in.
This accessory is supplied as a box terminal, facilitating secure and reliable connections within electrical systems.
The Siemens 3VA9234-0JA11 is a box terminal accessory designed for use with 3VA5 250 circuit breakers.
For IEC connections, copper cable with a minimum stranded cross-section of 6 mm² and a maximum of 120 mm² can be used.
The required stripped length for IEC connections is 19 mm.
For IEC stranded connections, the tightening torque is 6 Nm for 6-25 mm² and 10 Nm for 35-120 mm².
For UL connections, solid copper cable from 10 AWG to 10 AWG, and stranded/finely stranded copper cable from 10 AWG to 3/0 AWG can be used.
The stripped length for UL connections is 0.75 inches.
For UL stranded connections, the tightening torque is 105 lb-in for 10-4 AWG and 140 lb-in for 3-3/0 AWG.
