3VA9233-0JB12
Siemens
The Siemens 3VA9233-0JB12 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It offers versatile conductor size compatibility.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| SVHC Present |

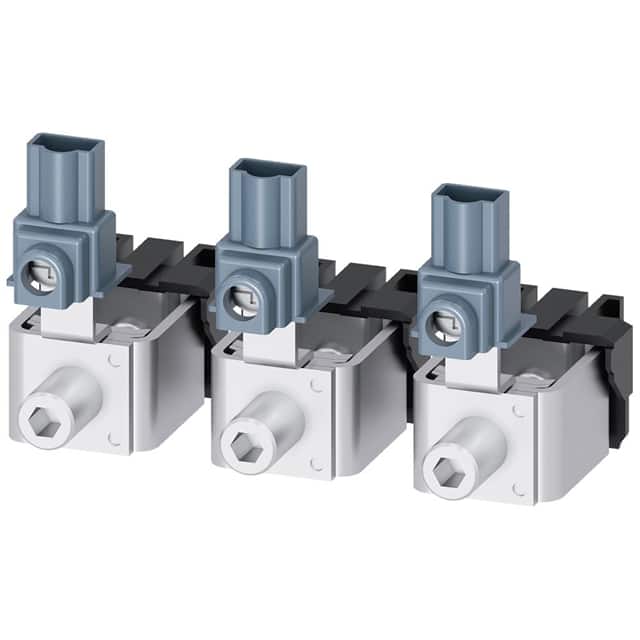

This Siemens 3VA9233-0JH11 is a terminal block accessory, specifically a box terminal with control wire voltage tap-off. It is designed for integration with 3VA5 250 circuit breakers.
The accessory adheres to both IEC and UL connection standards. For IEC connections, it accommodates stranded copper cables from 6 mm² to 120 mm², with a stripped length of 19 mm. Tightening torques vary based on conductor type and size, ranging from 6 Nm to 10 Nm.
Under UL standards, it accepts solid or stranded copper cables from 10 AWG to 3/0 AWG, with a stripped length of 0.75 inches. Tightening torques for UL connections range from 105 lb-in to 140 lb-in, depending on the conductor type and size.
This component is part of the SENTRON product brand from Siemens, offering reliable connectivity solutions for electrical installations.
TS1.2.
Stranded copper from 6 mm² to 120 mm².
Solid 10 AWG, stranded 10 AWG to 3/0 AWG.
19 mm (0.75 in).
6 Nm.
10 Nm.
Siemens 3VA5 250A.
