3VA9234-0JC13 The Siemens 3VA9234-0JC13 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It supports a wide range of conductor sizes.
Mfr Part #:

3VA9234-0JC13

Mfr Name: Siemens
Siemens
The Siemens 3VA9234-0JC13 is a wire connector accessory designed for use with 3VA5 250 circuit breakers. It supports a wide range of conductor sizes.
Stock on Request

3VA9234-0JC13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9234-0JC13 Description

Short technical summary and product information.

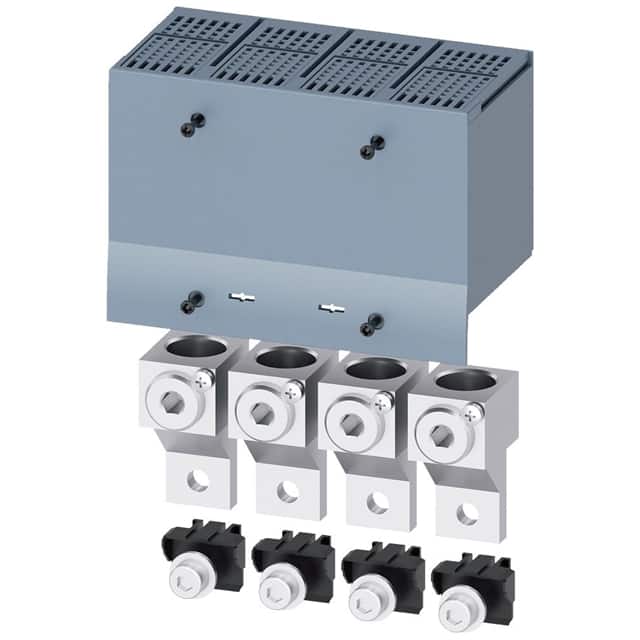

This Siemens 3VA9234-0JC13 is a wire connector accessory, specifically a terminal block, designed for integration with the 3VA5 250 series circuit breakers. It facilitates connections for both copper and aluminum stranded or finely stranded cables, accommodating cross-sections from a minimum of 50 mm² up to a maximum of 240 mm² according to IEC standards.



For UL compliance, the connector is rated for permissible conductor temperatures of 75°C and supports conductor cross-sections from 2 AWG to 350 kcmil. Tightening torques are specified for both IEC and UL standards, ensuring secure connections. The accessory is designated as TA2.2.



This component is part of the Siemens SENTRON product line, known for its electrical distribution and safety solutions. The wire connector is supplied in a carton package.

3VA9234-0JC13 Quick Information

Product Type: Wire Connector
Series: 3VA5
Canonical Name: Siemens 3VA9234-0JC13 Wire Connector
Subcategory: Terminal Block

3VA9234-0JC13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9234-0JC13 Features

  • Wire connector accessory for 3VA5 250.
  • Supports IEC conductor sizes 50-240 mm².
  • Supports UL conductor sizes 2 AWG-350 kcmil.
  • Tightening torque specified per IEC and UL.
  • Rated for 75°C conductor temperature (UL).

3VA9234-0JC13 Applications

  • Used with Siemens 3VA5 circuit breakers.
  • Facilitates secure wire connections.
  • Suitable for copper and aluminum conductors.
  • Designed for electrical distribution systems.

3VA9234-0JC13 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum conductor cross-section supported by the Siemens 3VA9234-0JC13?

The Siemens 3VA9234-0JC13 supports a maximum conductor cross-section of 240 mm² for copper and aluminum cables according to IEC standards, and 350 kcmil according to UL standards.

What is the tightening torque for copper cables with the 3VA9234-0JC13?

For stranded and finely stranded copper cables from 50-150 mm², the tightening torque is 31.1 Nm (IEC). For stranded and finely stranded cables from 2 AWG to 350 kcmil, the tightening torque is 275 lb-in (UL).

What is the permissible temperature for connectable conductors according to UL?

The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.

Is the Siemens 3VA9234-0JC13 RoHS compliant?

Yes, the RoHS Status is listed as RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
