3VA9233-0JH12 The Siemens 3VA9233-0JH12 is a box terminal accessory designed for use with 3VA5 250 circuit breakers. It provides connections compliant with both IEC and UL standards.
Mfr Part #:

3VA9233-0JH12

Mfr Name: Siemens
Siemens
The Siemens 3VA9233-0JH12 is a box terminal accessory designed for use with 3VA5 250 circuit breakers. It provides connections compliant with both IEC and UL standards.
Stock on Request

3VA9233-0JH12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
For Use With

3VA9233-0JH12 Description

Short technical summary and product information.

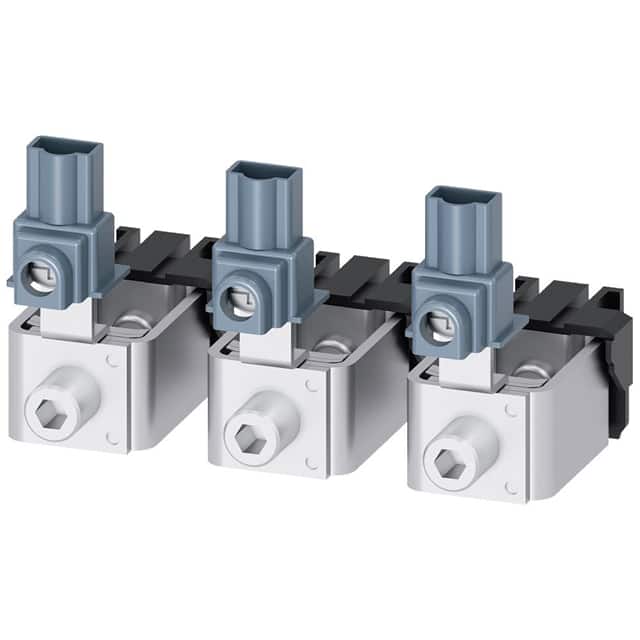

This Siemens 3VA9233-0JH12 is a box terminal accessory, part of the SENTRON product line, specifically designed for use with 3VA5 250 circuit breakers. It facilitates electrical connections for control wires and voltage tap-off.



The terminal block supports a wide range of conductor sizes according to IEC standards, from a minimum of 25 mm² to a maximum of 185 mm² for stranded copper cable. Tightening torques for IEC connections range from 6 Nm for smaller conductors (25-35 mm²) to 12 Nm for larger ones (50-185 mm²). For finely stranded copper cables, similar torque values apply.



Under UL standards, the accessory accommodates stranded and finely stranded copper cables from a minimum of 4 AWG up to 350 kcmil. The specified tightening torques are 70 lb-in for 4-1 AWG conductors and 140 lb-in for 1/0-350 kcmil conductors.



The accessory is supplied in box packaging. It is compatible with Siemens 3VA5 250 devices.

3VA9233-0JH12 Quick Information

Product Type: Terminal Block Accessory
Canonical Name: Siemens 3VA9233-0JH12 Box Terminal Accessory
Subcategory: Accessory

3VA9233-0JH12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3VA9233-0JH12 Features

  • Box terminal accessory for 3VA5 250 breakers.
  • IEC conductor sizes: 25 mm² to 185 mm².
  • UL conductor sizes: 4 AWG to 350 kcmil.
  • Specified tightening torques for IEC and UL.
  • Compatible with Siemens SENTRON accessories.

3VA9233-0JH12 Applications

  • Connects control wires to circuit breakers.
  • Facilitates voltage tap-off connections.
  • Used in 3VA5 250 circuit breaker installations.
  • Ensures secure conductor termination.

3VA9233-0JH12 FAQs

6 frequently asked questions generated from this part’s specifications.
What conductor sizes does the 3VA9233-0JH12 support under IEC standards?

The 3VA9233-0JH12 supports IEC connectable conductor cross-sections from a minimum of 25 mm² to a maximum of 185 mm² for stranded copper cable.

What are the tightening torque specifications for IEC connections?

For IEC connections using stranded copper cables, the tightening torque is 6 Nm for 25-35 mm² conductors and 12 Nm for 50-185 mm² conductors. For finely stranded cables, it is 6 Nm for 35 mm² and 12 Nm for 50-150 mm².

What conductor sizes does the 3VA9233-0JH12 support under UL standards?

Under UL standards, the 3VA9233-0JH12 supports connectable conductor cross-sections from a minimum of 4 AWG to a maximum of 350 kcmil for both stranded and finely stranded copper cable.

What are the tightening torque specifications for UL connections?

For UL connections using stranded copper cables, the tightening torque is 70 lb-in for 4-1 AWG conductors and 140 lb-in for 1/0-350 kcmil conductors. Similar values apply for finely stranded cables.

What is the accessory type for part 3VA9233-0JH12?

The accessory type for part 3VA9233-0JH12 is a Terminal Block.

What Siemens circuit breaker series is this accessory designed for?

This accessory is designed for use with the Siemens 3VA5 250 series circuit breakers.
