3VA9233-0JA12
Siemens
The Siemens 3VA9233-0JA12 is a terminal block accessory designed for use with 3VA5 250 circuit breakers. It supports both IEC and UL connection standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

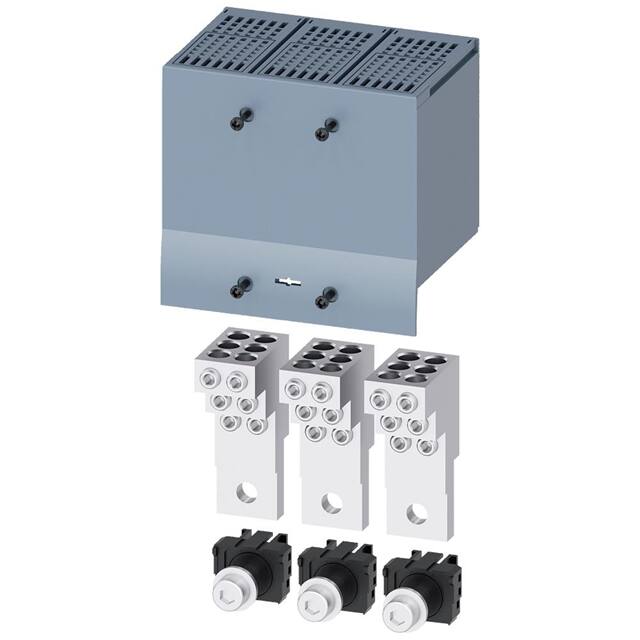

The Siemens 3VA9233-0JF60 is a SENTRON series wire connector accessory, specifically designed as an accessory for the 3VA5 250 circuit breaker series. This component is crucial for establishing reliable electrical connections.
It supports a wide range of conductor cross-sections for copper cables, from a minimum of 1.5 mm² stranded up to 35 mm² stranded. For aluminum cables, it accommodates solid and stranded conductors ranging from 12 AWG to 2 AWG. The accessory also specifies stripped lengths for both IEC and UL standards, ensuring proper preparation for secure termination.
Tightening torque specifications are provided for various conductor types and sizes under both IEC and UL standards, ensuring correct installation torque to maintain connection integrity. The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.
This wire connector accessory is essential for building robust and compliant electrical installations when working with Siemens 3VA5 circuit breakers.
The Siemens 3VA9233-0JF60 is a wire connector accessory designed for use with 3VA5 250 circuit breakers.
For stranded copper cables, the connectable conductor cross-section ranges from a minimum of 1.5 mm² to a maximum of 35 mm².
The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C.
For solid copper cables, the tightening torque is 2.8 Nm for 1.5 mm², 6.2 Nm for 2.5 - 10 mm², and 7 Nm for 16 mm².
The Moisture Sensitivity Level (MSL) is 1.
