3VA9233-0JA12
Siemens
The Siemens 3VA9233-0JA12 is a terminal block accessory designed for use with 3VA5 250 circuit breakers. It supports both IEC and UL connection standards.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

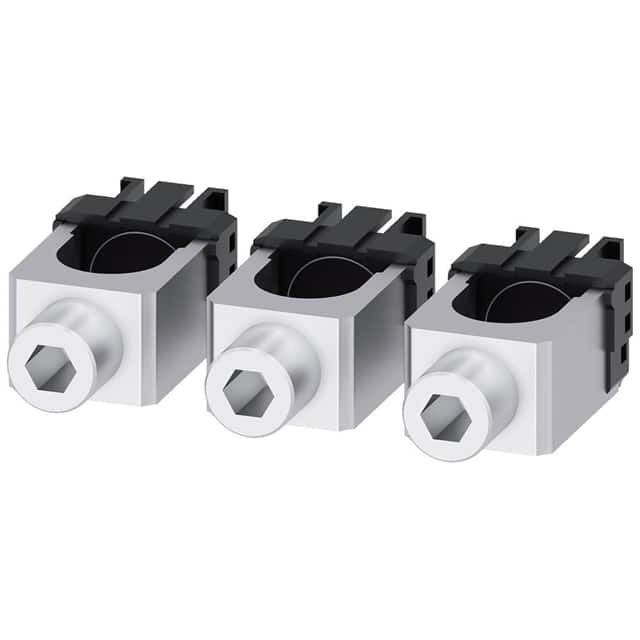

This Siemens 3VA9233-0JD12 is a wire connector accessory, specifically a circular conductor terminal, designed for use with the 3VA5 250 circuit breaker series. It is constructed from copper and is suitable for connecting 3 units.
The terminal supports both stranded and finely stranded copper cables, with a minimum cross-section of 6 AWG and a maximum of 350 kcmil. The permissible temperature for the connectable conductor according to UL 486A-486B is 90 °C. The required stripped length for connections is 20 mm according to IEC standards and 0.8 inches according to UL standards.
Tightening torque specifications are provided for both stranded and finely stranded copper cables. For stranded cables between 6-2 AWG, the torque is 140 lb-in, and for 1 AWG to 350 kcmil, it is 275 lb-in. The same torque values apply to finely stranded cables.
This accessory is part of the SENTRON product brand from Siemens, offering reliable connectivity solutions for electrical installations.
The Siemens 3VA9233-0JD12 is a circular conductor terminal wire connector.
This wire connector is designed for use with the 3VA5 250 circuit breaker.
It supports stranded and finely stranded copper cable from a minimum of 6 AWG to a maximum of 350 kcmil.
The permissible temperature for the connectable conductor according to UL 486A-486B is 90 °C.
For stranded and finely stranded copper cables between 6-2 AWG, the torque is 140 lb-in. For 1 AWG to 350 kcmil, the torque is 275 lb-in.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
