3VA9134-0JK10
Siemens
Siemens 3VA9134-0JK10 is a terminal connector accessory with TC1.0 designation and 12.2 mm stripped length (IEC).
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

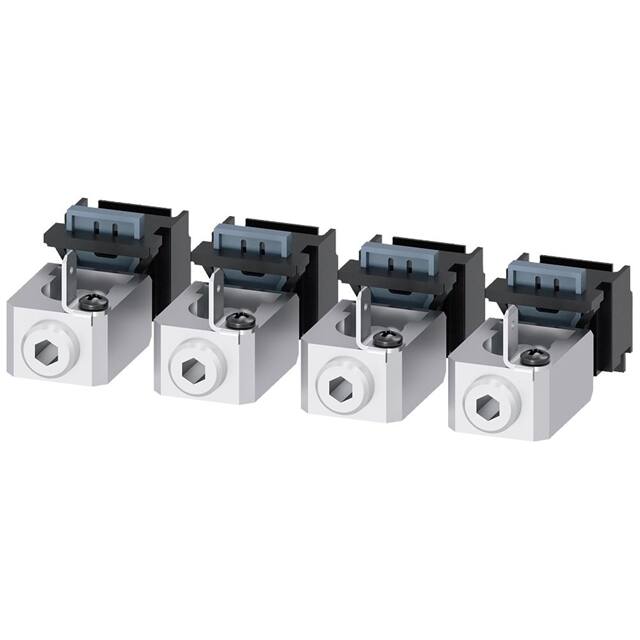

This Siemens SENTRON wire connector, model 3VA9134-0JK11, is an accessory designed for use with 3VA5 125 circuit breakers. It functions as a circular conductor terminal, specifically a wire connector with control wire voltage tap-off.
The connector is suitable for copper cables, supporting solid, stranded, and finely stranded conductors. The permissible conductor cross-section ranges from a minimum of 14 AWG to a maximum of 10 AWG for solid conductors, and up to 2/0 AWG for stranded and finely stranded conductors. The stripped length required for connections is 12.2 mm according to IEC standards and 0.48 inches according to UL standards.
Tightening torque specifications are provided for various conductor types and sizes, ranging from 25 lb-in for 14 AWG solid and stranded conductors to 55 lb-in for 10 AWG solid, stranded, and finely stranded conductors up to 2/0 AWG. The permissible temperature for connectable conductors according to UL 486A-486B is 90 °C.
This accessory is part of the Siemens SENTRON product line, offering reliable connectivity solutions for electrical installations. It is designated as a TC1.1 terminal.
It supports solid copper cable from 14 AWG minimum to 10 AWG maximum, stranded and finely stranded copper cable from 14 AWG minimum to 2/0 AWG maximum.
The stripped length is 12.2 mm according to IEC and 0.48 inches according to UL.
The permissible temperature for connectable conductors according to UL 486A-486B is 90 °C.
The tightening torque for 14 AWG solid copper cable is 25 lb-in.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
