3VA9134-0JK10
Siemens
Siemens 3VA9134-0JK10 is a terminal connector accessory with TC1.0 designation and 12.2 mm stripped length (IEC).
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

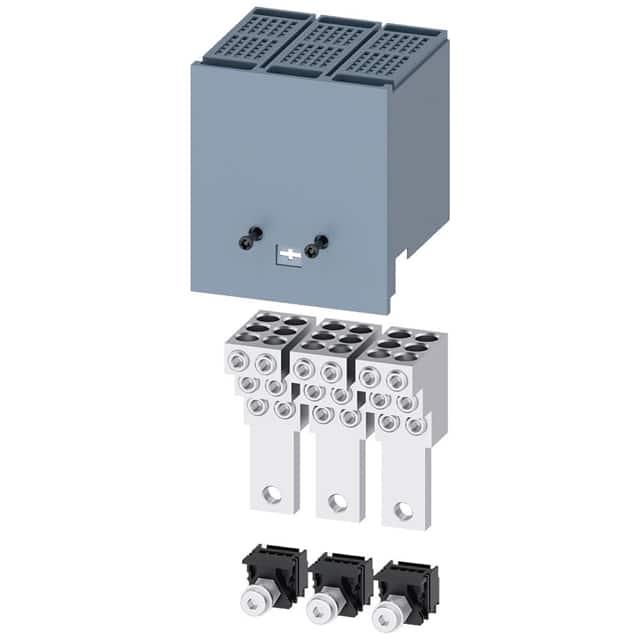

The Siemens 3VA9133-0JF60 is a wire connector accessory, part of the SENTRON product line, specifically designed for use with 3VA5 125 circuit breakers. This accessory facilitates secure and reliable electrical connections.
It supports connectable conductor cross-sections for copper cable ranging from 1.5 mm² to 35 mm² (stranded) and for aluminum cable from 12 AWG to 2 AWG (stranded). The accessory also specifies various tightening torques for solid, stranded, and finely stranded copper and aluminum cables according to both IEC and UL standards. For instance, under IEC standards, the tightening torque for stranded copper cable from 16-35 mm² is 7 Nm, while under UL standards, it is 62 lb-in for stranded copper cable from 6-2 AWG.
The permissible temperature for connectable conductors according to UL 486A-486B is 75 °C. Stripped lengths are specified in both millimeters (12/24/39.5 mm) and inches (0.47/0.9/1.55 in) for different connection types.
This wire connector is essential for ensuring proper termination and performance within the 3VA5 125 circuit breaker system, offering flexibility for various wiring configurations and conductor types.
Minimum 1.5 mm², maximum 35 mm².
For 1.5 mm²: 2.8 Nm; for 2.5-10 mm²: 6.2 Nm; for 16-35 mm²: 7 Nm (IEC).
IEC: 12 / 24 / 39.5 mm; UL: 0.47 / 0.9 / 1.55 in.
75 °C.
Siemens 3VA5 125.
Yes, solid and stranded aluminum cables are supported under UL. Solid aluminum: min 12 AWG, max 10 AWG. Stranded aluminum: min 12 AWG, max 2 AWG.
For 1.5 mm²: 2.8 Nm; for 2.5-10 mm²: 6.2 Nm; for 16-25 mm²: 7 Nm.
