3VA5225-5ED41-0AA0
Siemens
The Siemens 3VA5225-5ED41-0AA0 is a 4-pole molded-case circuit breaker rated for 250A and 690V AC. It offers a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

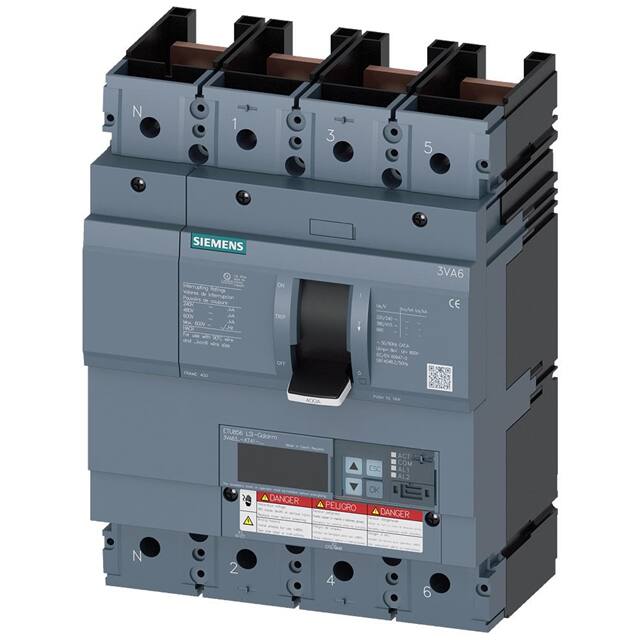

This Siemens 3VA6325-5KT41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It has a nominal current rating of 250A and a breaking capacity of 35kA at 480V, with higher capacities at lower voltages according to UL 489 standards.
The circuit breaker utilizes an ETU856 electronic trip unit with LSI (Long-time, Short-time, Instantaneous) protection functions. It supports adjustable overload protection from 100A to 250A and adjustable short-circuit protection settings. The device is designed for DIN rail mounting and features a lever actuator.
With an insulation rated voltage of 600V and a maximum power loss of 27.3W, this breaker is suitable for various industrial applications. It also includes communication and other measurement functions, enhancing its utility in modern electrical systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures from 55°C to 70°C.
The breaking capacity according to UL 489 is 35kA at 480V, and according to IEC 60947, it is 55kA at 415V and 5kA at 690V.
This circuit breaker has 4 poles.
It uses an ETU856 overcurrent release with LSI protection functions.
The mounting type is DIN Rail.
