3VA6225-5KQ41-2AA0
Siemens
The Siemens 3VA6225-5KQ41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It offers a 250A current rating and a 690V voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Overload Protection | |
| Voltage Rating |

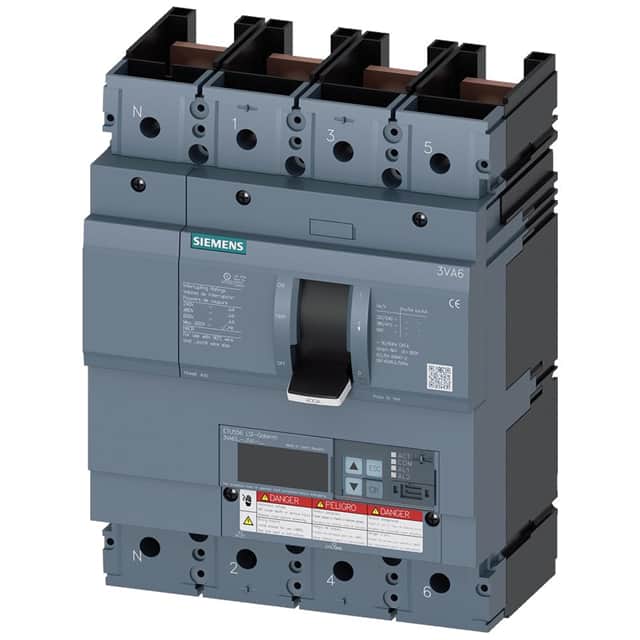

This Siemens 3VA6325-5JT41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features an ETU556 electronic trip unit with LSI protection functions.
The breaker has a current rating of 250A and a breaking capacity of 35kA at 480V according to UL 489 standards. It also offers a breaking capacity of 55kA at 415V and 5kA at 690V per IEC 60947 standards. The overload protection is adjustable from 100A to 250A, with short-circuit protection adjustable from 0.6 to 10 times the rated current (Isd) and 1.5 to 12 times the rated current (Ii).
With an insulation voltage rating of 600V, it supports communication functions and has a mechanical service life of typically 15,000 switching cycles. The breaker is designed for DIN rail mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
It has a breaking capacity of 35kA at 480V according to UL 489, and 55kA at 415V according to IEC 60947.
Overload protection is adjustable from 100A to 250A (Ir), short-circuit protection (Isd) from 0.6x to 10x In, and short-circuit protection (Ii) from 1.5x to 12x In.
The assigned insulation voltage (Ui) is 600V.
Yes, it features a communication function.
The typical mechanical service life is 15,000 switching cycles.
