3VA6325-5HM41-0AA0
Siemens
The Siemens 3VA6325-5HM41-0AA0 is a 4-pole molded-case circuit breaker. It offers a 250A operational current and a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

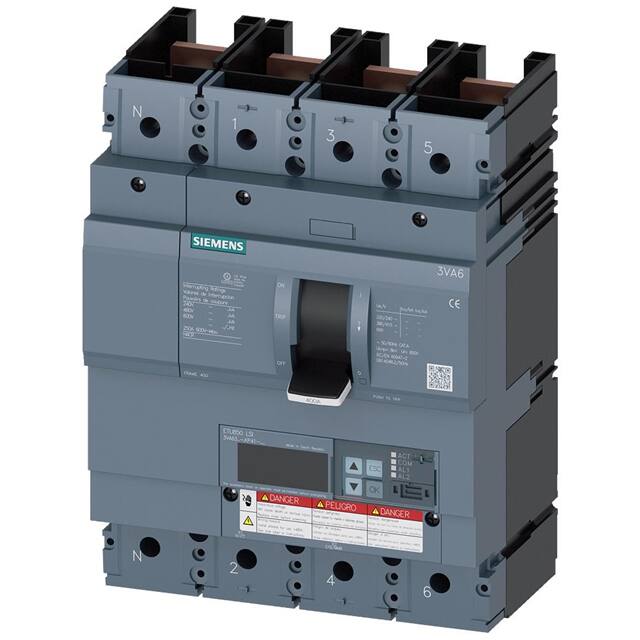

This Siemens 3VA6325-5KP41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It features an ETU850 electronic trip unit with LSI protection functions, allowing for adjustable overload protection from 100A to 250A and short-circuit protection settings.
The breaker has an operational current rating of 250A at temperatures up to 70°C and an insulation voltage of 600V. Its breaking capacity according to UL 489 is 35kA at 480V, and according to IEC 60947, it is 55kA at 415V.
With a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles, this circuit breaker is built for durability. It supports communication and other measurement functions. The unit is designed for DIN rail mounting and has dimensions of 248mm height, 184mm width, and 110mm depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The insulation voltage is 600 V.
The maximum breaking capacity at 240 V is 35 kA.
The operational current is 250 A.
The mechanical service life is 15,000 cycles.
Yes, it supports communication functions.
