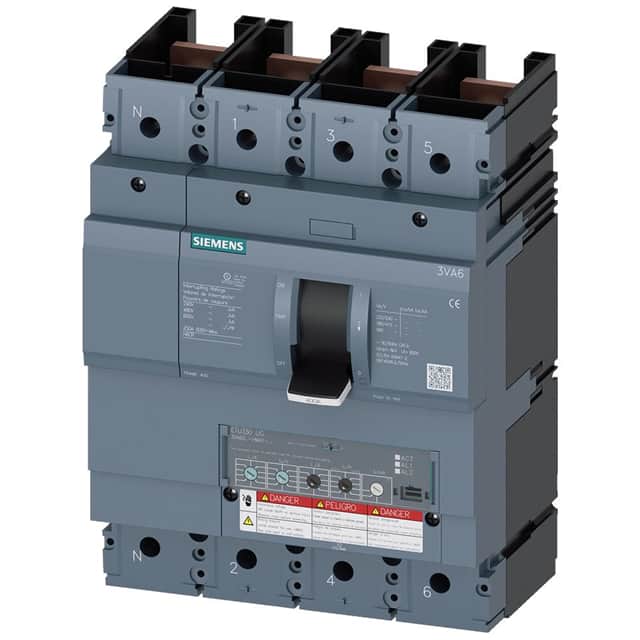

The Siemens 3VA6325-5HM41-0AA0 is a 4-pole molded-case circuit breaker from the 3VA6 series, designed for system protection. It features an operational current of 250A at temperatures up to 70°C and a breaking capacity of 35kA at 480V according to UL 489 standards.
This circuit breaker is equipped with an ETU330 electronic trip unit with LIG protection functions. It supports adjustable overload protection from 100A to 250A and short-circuit protection from 1.5 to 12 times the nominal current. The device also includes adjustable ground-fault protection and N-conductor protection.
With a mechanical service life of 15,000 cycles and electrical endurance ratings of up to 6,000 cycles at 480V, the 3VA6325-5HM41-0AA0 is built for durability. Its dimensions are 248mm in height, 184mm in width, and 110mm in depth, with a DIN rail mounting type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures up to 70°C.
The breaking capacity at 480V is 35kA.
This circuit breaker has 4 poles.
The assigned insulation voltage is 600V.
It is designed for DIN rail mounting.
