3VA6225-5JT31-2AA0
Siemens
The Siemens 3VA6225-5JT31-2AA0 is a 3-pole molded-case circuit breaker designed for system protection. It features a 250A current rating and a 35kA breaking capacity at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

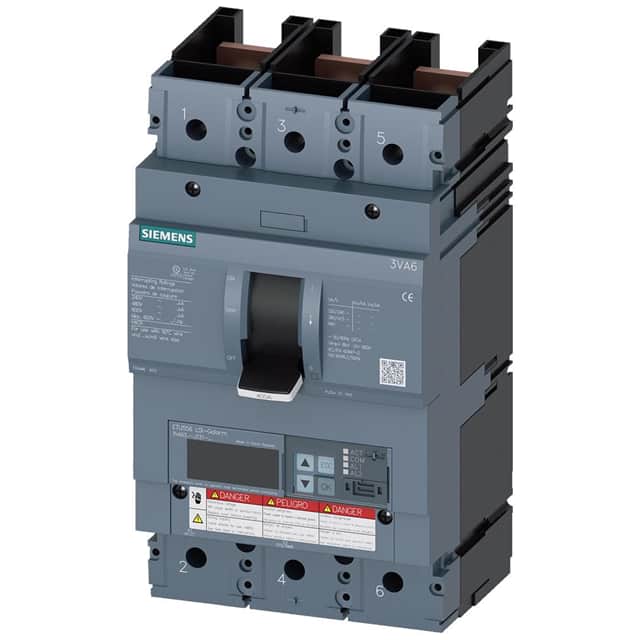

This Siemens 3VA6325-5JT31-2AA0 is a 3-pole molded-case circuit breaker designed for system protection. It operates with a nominal current of 250A and has a voltage rating of 690V.
The circuit breaker offers LSI (Long-time, Short-time, Instantaneous) overcurrent protection, with adjustable settings for overload (Ir) from 100A to 250A and short-circuit (Isd, Ii) protection.
Key electrical specifications include a breaking capacity of 35kA at 480V (UL 489) and up to 85kA at 240V (IEC). It has a mechanical service life of 15,000 switching cycles and electrical endurance ratings of 6,000 cycles at 480V and 380/415V.
Mounting is via DIN rail. The unit is compliant with UL 489 standards and is designated as HACR Type. It also features communication capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 250A at temperatures from 55°C to 70°C.
The voltage rating is 690 V.
The ETU556 overcurrent release offers LSI protection.
The breaking capacity according to UL 489 at 480V is 35 kA.
It is designed for DIN Rail mounting.
The typical mechanical service life is 15,000 switching cycles.
