3VA5225-6EF31-0AA0
Siemens
The Siemens 3VA5225-6EF31-0AA0 is a 3-pole molded-case circuit breaker designed for system protection. It offers a current rating of 250A and a maximum operational voltage of 690V AC.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

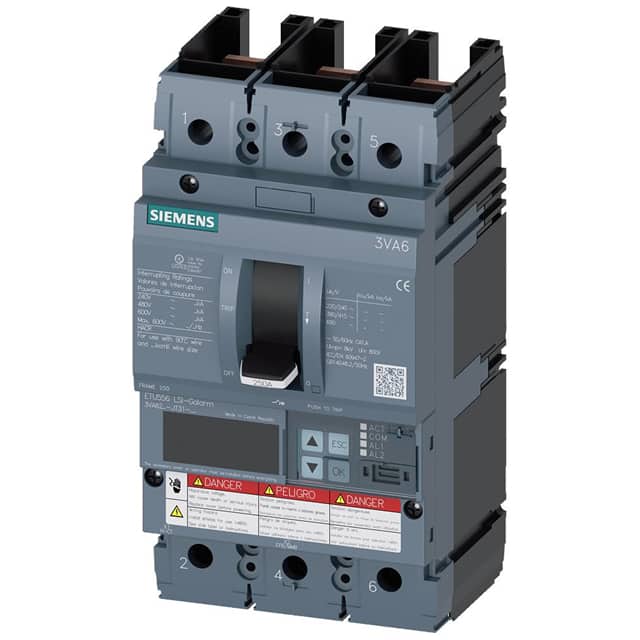

The Siemens 3VA6225-5JT31-2AA0 is a 3-pole molded-case circuit breaker from the 3VA6 series, designed for system protection applications. It operates with an insulation voltage of 600V and offers a nominal current rating of 250A. The breaker provides a breaking capacity of 35kA at 480V according to UL 489 standards, and 55kA at 415V according to IEC 60947.
This circuit breaker features an ETU556 overcurrent release with LSI protection functions. It has a mechanical service life of 20,000 switching cycles and electrical endurance ratings of up to 6,000 cycles at 380/415V. The unit is mountable on a DIN rail and supports communication functions.
Key electrical specifications include adjustable response currents for overload (Ir) from 100A to 250A and short-circuit (Isd) from 0.6 to 10x In. It also has an adjustable inrush current (Ii) range from 1.5 to 10x In. The breaker is marked as 100%-rated according to UL 489 and is HACR Type compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The circuit breaker has a nominal current rating of 250A.
The circuit breaker has a voltage rating of 690 V.
The breaking capacity according to UL 489 at 480V is 35 kA.
This circuit breaker has 3 poles.
This circuit breaker supports DIN Rail mounting.
The RoHS status is RoHS3 Compliant, and the REACH status is REACH Unaffected.
