3VA6225-5HL31-2AA0
Siemens
The Siemens 3VA6225-5HL31-2AA0 is a 3-pole molded-case circuit breaker with a 250A operational current and a 35kA breaking capacity at 480V. It is designed for DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

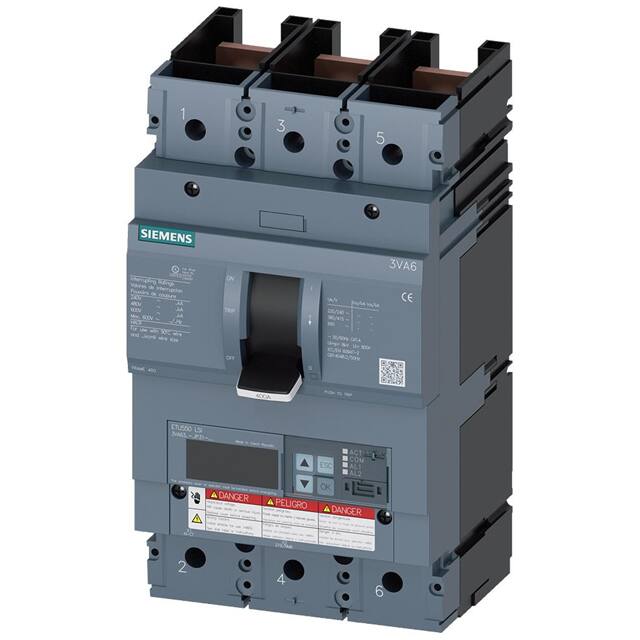

The Siemens 3VA6325-5JP31-2AA0 is a 3-pole molded-case circuit breaker designed for system protection. It features an ETU550 electronic trip unit with LSI protection functions and an operational current of 250A at temperatures up to 70°C.
With an insulation voltage of 600V and a breaking capacity of 35kA at 480V (UL 489), this circuit breaker is suitable for various applications. It offers adjustable overcurrent and short-circuit protection settings, including a minimum adjustable response current of 100A and a maximum of 250A for overload, and adjustable short-circuit protection from 0.6 to 10 times the nominal current.
The mechanical design includes dimensions of 9.8 inches in height, 5.4 inches in width, and 4.3 inches in depth. It is designed for DIN rail mounting. The breaker also supports communication functions and has a mechanical service life of typically 15,000 switching cycles.
This circuit breaker meets UL 489 standards and is marked as HACR Type. It is compliant with RoHS3, has an MSL of 1, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 250A at temperatures from 55°C to 70°C.
The insulation voltage (Ui) is 600V.
The breaking capacity according to UL 489 is 35kA at 480V.
This circuit breaker is designed for DIN rail mounting.
It features adjustable overload protection (Ir) from 100A to 250A and adjustable short-circuit protection (Isd) from 0.6 to 10x In, with instantaneous trip (Ii) from 1.5 to 12x In.
