3VA6225-5JQ32-2AA0
Siemens
The Siemens 3VA6225-5JQ32-2AA0 is a 3-pole molded case circuit breaker rated for 250A and 690V. It features a 55kA breaking capacity and is designed for DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Country of Origin | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage | |
| Voltage Rating | |
| Weight |

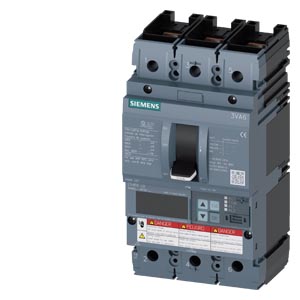

This Siemens 3VA6225-5KP32-2AA0 is a 3-pole, 250A molded case circuit breaker designed for low voltage applications. It is part of the 3VA62 frame series, offering medium-low breaking capacity.
The breaker is equipped with an ETU850 electronic trip unit featuring LCD display and LSI (Long-time, Short-time, Instantaneous) protection with metering capabilities. The rated voltage is 690V, and it has a rated short-circuit breaking capacity of 55 kA at 400V.
Key features include a 100% rated current capability, screw connection for the main circuit with lug terminals and nut keepers, and a rocker lever for control. The device has a degree of protection of IP40 and is suitable for DIN rail mounting.
Dimensions are 4.1 inches wide, 7.8 inches high, and 4.2 inches deep. The power loss is 42W. This circuit breaker is manufactured in Czechia and carries CE, CSA, and UL approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated permanent current (Iu) is 250 A.
The rated voltage is 690 V.
The rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz is 55 kA.
It is designed for DIN rail mounting.
It uses an ETU850 electronic trip unit with LSI functionality and metering.
The dimensions are 4.1 inches wide, 7.8 inches high, and 4.2 inches deep.
