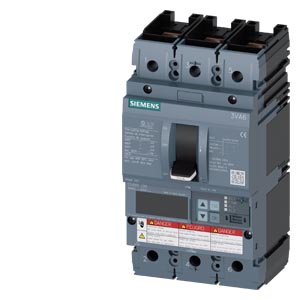

This Siemens 3VA6225-5JQ32-2AA0 is a 3-pole molded case circuit breaker from the 3VA62 series, designed for low voltage applications. It offers a rated permanent current of 250A and a rated voltage of 690V.
The circuit breaker has a breaking capacity of 55 kA at 400V and is equipped with an ETU560 electronic trip unit with LSIG functionality. The overload release current setting is 100A, with adjustment ranges for short-term delayed and undelayed short-circuit release set at 150A and 375A respectively.
Designed for fixed built-in technique, this device features a DIN rail mounting type and screw connection for the main circuit. Its dimensions are 4.1 inches in width, 7.8 inches in height, and 4.2 inches in depth. The ingress protection rating is IP40.
Additional specifications include a power loss of 42W. The country of origin for this component is Czechia. It is suitable for industrial automation, control, and electrical protection applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated permanent current (Iu) for this circuit breaker is 250A.
The rated voltage for this circuit breaker is 690V.
The rated short-circuit breaking capacity (Icu) at 400V is 55 kA.
This circuit breaker has 3 poles.
The mounting type is DIN Rail.
The degree of protection (IP) is IP40.
The dimensions are 4.1 inches in width, 7.8 inches in height, and 4.2 inches in depth.
