3VA6210-5JP31-2AA0
Siemens
The Siemens 3VA6210-5JP31-2AA0 is a 3-pole molded-case circuit breaker designed for system protection. It features a 100A operational current and a 690V voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

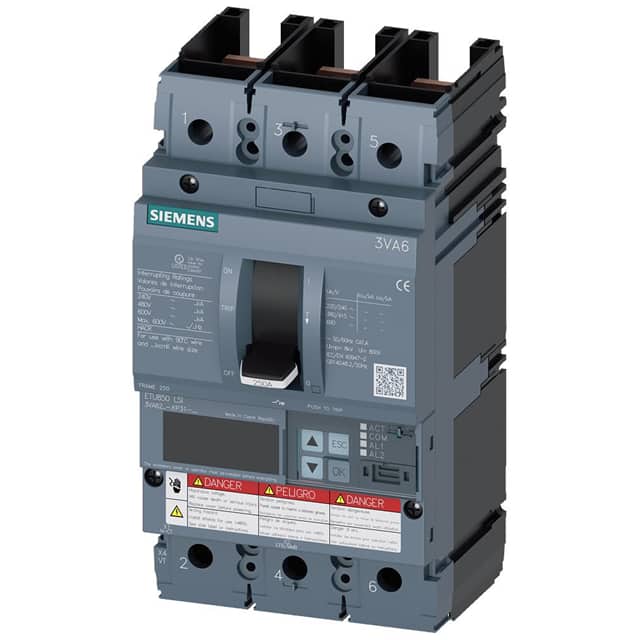

This Siemens SENTRON 3VA62 series molded case circuit breaker, part number 3VA6210-5KP31-2AA0, is a 3-pole device designed for system protection. It has a rated operational current of 100A and a voltage rating of 690V.
The circuit breaker offers various protection functions including LSI (Overload, Short-circuit, Instantaneous trip) with adjustable current ranges. It boasts a breaking capacity of 3kA at 690V, 55kA at 415V, and 85kA at 240V according to IEC standards. UL 489 ratings include a breaking capacity of 35kA at 480V.
With a mechanical service life of up to 25,000 cycles and electrical endurance ratings of 6,000 cycles at 380/415V, this breaker is built for durability. It supports communication and other measurement functions. The unit is designed for DIN rail mounting and has dimensions of 198mm height, 105mm width, and 86mm depth.
Compliance includes UL 489, IEC 60947, and CCC certifications. It is also RoHS3 compliant and has an IP40 protection class.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 100A.
The rated AC voltage is 690V.
The breaking capacity is 3kA according to IEC 60947 at 690V.
The ETU850 overcurrent release offers LSI protection functions.
The dimensions are 198mm in height, 105mm in width, and 86mm in depth.
