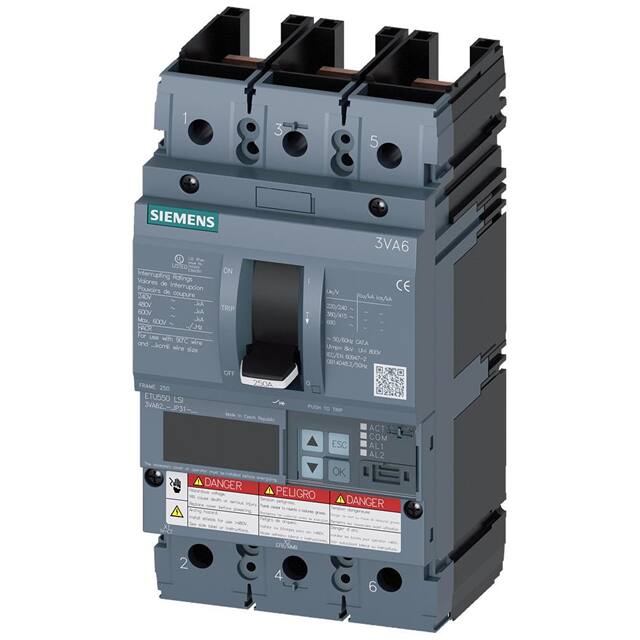

The Siemens 3VA6210-5JP31-2AA0 is a 3-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. This breaker operates with a rated current of 100A and a voltage rating of 690V.
It offers a breaking capacity of 35kA at 480V, with various other ratings according to IEC and UL standards. The overcurrent release is an ETU550 with LSI protection functions, allowing adjustable overload protection from 40A to 100A and short-circuit protection settings.
This circuit breaker is built for DIN rail mounting and features a mechanical service life of 20,000 switching cycles. It also includes communication capabilities and is marked as a 100%-rated breaker according to UL 489.
Key electrical specifications include an insulation voltage of 600V and a maximum power loss of 6.7W. The physical dimensions are 198mm in height, 105mm in width, and 86mm in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 100A at temperatures from 55°C to 70°C.
The voltage rating is 690V.
The breaking capacity according to UL 489 is 35kA at 480V.
It is designed for DIN Rail mounting.
Yes, it features a communication function.
