3VA6210-5HN41-2AA0
Siemens

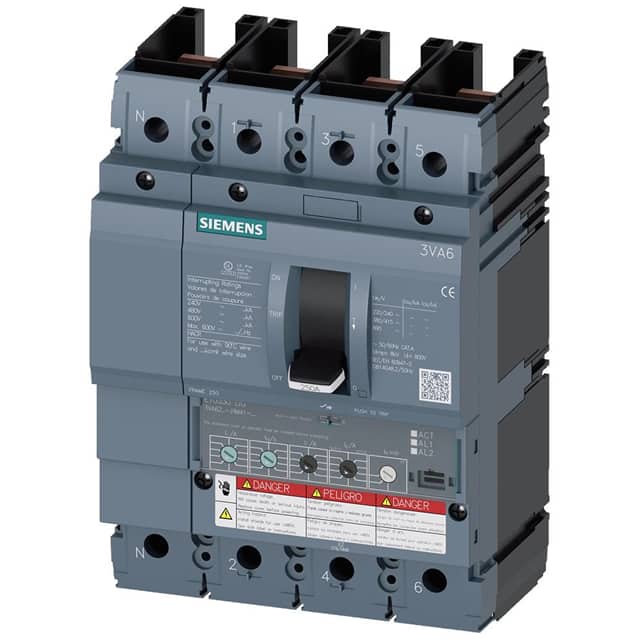

The Siemens 3VA6210-5HN41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 100A operational current and a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |
This Siemens 3VA6210-5HM41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a 100A operational current rating and a maximum breaking capacity of 35kA at 480V according to UL 489 standards, and 85kA at 240V according to IEC 60947.
The circuit breaker is equipped with an ETU330 overcurrent release with LIG protection function. It offers adjustable overload protection (Ir) from 40A to 100A and adjustable short-circuit protection (Ii) from 1.5 to 12 times the rated current. It also includes adjustable N conductor protection and ground-fault protection.
With a rated insulation voltage (Ui) of 600V and a maximum power loss of 6.7W, this breaker is built for reliability. It has a mechanical service life of 20,000 cycles and electrical endurance ratings of 6,000 cycles at 480V and 380/415V. The unit is designed for DIN rail mounting.
Compliance includes CCC, CE, CSA, EAC, and UL489 approvals. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 100A at temperatures up to 70°C.
The rated insulation voltage (Ui) is 600V.
This circuit breaker has 4 poles.
It features adjustable overload protection (Ir) from 40A to 100A and adjustable short-circuit protection (Ii) from 1.5 to 12 times the rated current.
The breaking capacity is 35kA at 480V.
The mounting type is DIN Rail.
