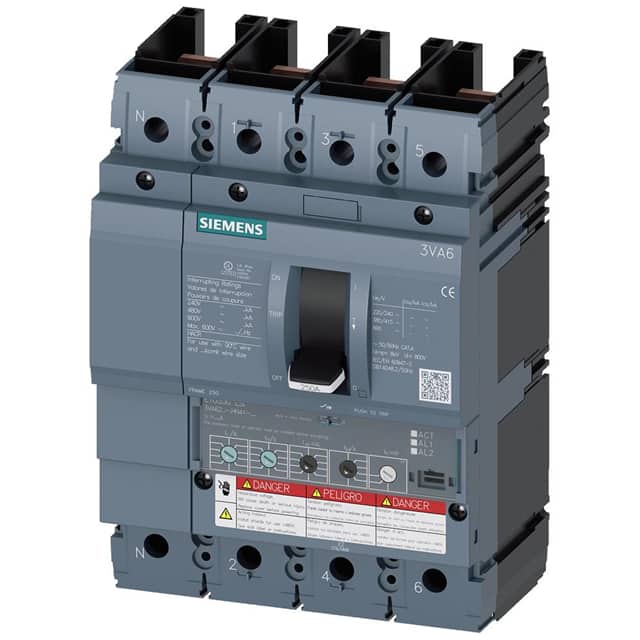

This Siemens 3VA6210-5HN41-2AA0 is a 4-pole molded-case circuit breaker from the SENTRON series, designed for system protection applications. It operates with an insulation voltage of 600V and offers an adjustable overload protection from 40A to 100A, with an instantaneous trip current up to 1200A.
The circuit breaker has a breaking capacity of 35kA at 480V according to UL 489 standards and 55kA at 415V according to IEC 60947. It features an ETU350 overcurrent release with LSI protection functions and is HACR Type rated.
With a mechanical service life of 20,000 cycles and electrical endurance ratings up to 7,500 cycles at 600V, this breaker is built for reliability. Its dimensions are 198mm in height, 140mm in width, and 86mm in depth, with DIN rail mounting.
Key electrical specifications include a maximum power dissipation of 6.7W and operational current ratings of 100A at temperatures up to 70°C. The breaker is marked as 100%-rated according to UL 489.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Siemens 3VA6210-5HN41-2AA0 circuit breaker has a voltage rating of 690 V.
The current rating of the Siemens 3VA6210-5HN41-2AA0 circuit breaker is 100A.
This circuit breaker has 4 poles.
The breaking capacity according to UL 489 at 480V is 35 kA.
This circuit breaker is designed for DIN Rail mounting.
The overcurrent release has LSI protection functions.
