3VA6210-5KL41-2AA0
Siemens
The Siemens 3VA6210-5KL41-2AA0 is a 4-pole molded-case circuit breaker with a 100A current rating and a 690V voltage rating. It offers a breaking capacity of 35kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

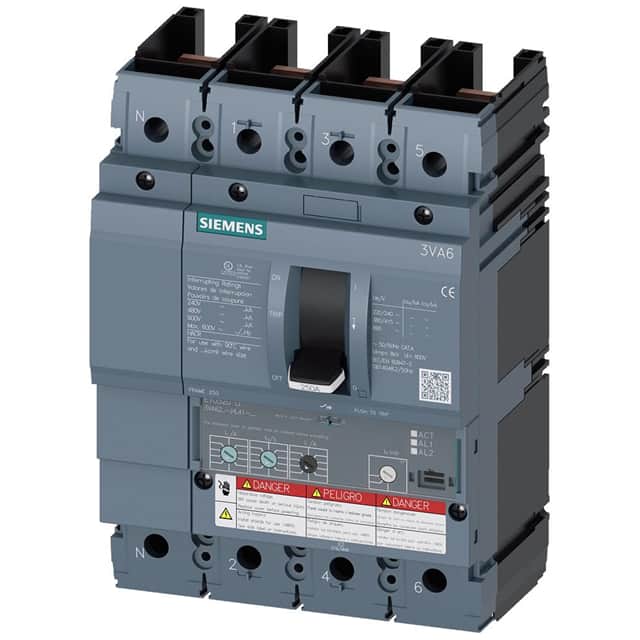

This Siemens 3VA6210-5HL41-2AA0 is a 4-pole molded-case circuit breaker designed for system protection. It operates with a 100A operational current across temperatures from 55°C to 70°C and has an insulation voltage rating of 600V.
The circuit breaker offers adjustable overload protection (Ir) from 40A to 100A and adjustable short-circuit protection (Ii) from 1.5 to 12 times the rated current. Its breaking capacity according to IEC standards includes 85kA at 240V, 55kA at 415V, and 3kA at 690V. Under UL 489 standards, it provides a breaking capacity of 35kA at 480V.
With a mechanical service life of 20,000 cycles and electrical endurance ratings up to 7,500 cycles at 600V, this breaker is built for durability. It is mounted on a DIN rail and has dimensions of 198mm height, 140mm width, and 86mm depth. The front protection class is IP40.
Additional features include UL 489 HACR Type designation and marking as a 100%-rated breaker. It also supports an optional motor drive accessory.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current is 100A at temperatures ranging from 55°C to 70°C.
The insulation voltage rating is 600V.
The breaking capacity at 480V is 35kA.
This circuit breaker has 4 poles.
The mounting type is DIN Rail.
