| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Insulation Material | |
| Number of Poles |

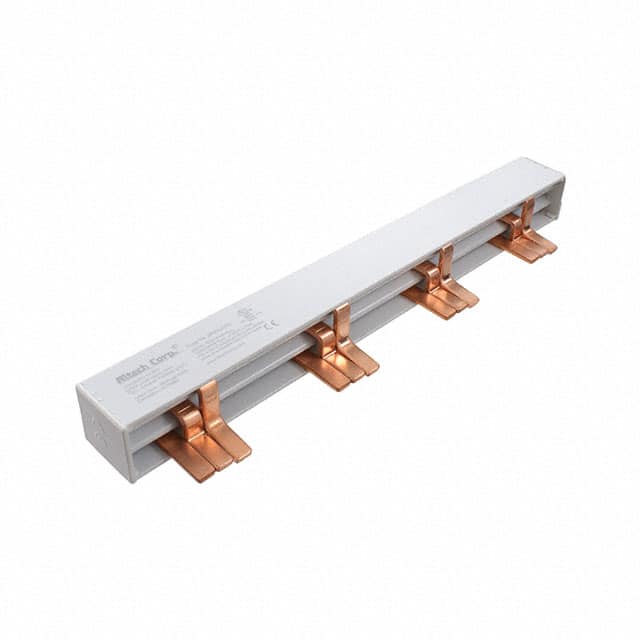

The Altech Corporation 3P25U3/12 is a 12-position bus bar, categorized under circuit protection accessories. This bus bar is constructed with a copper conductor and insulated with Polyamide, ensuring durability and safety in electrical applications.
It is designed for use with miniature molded circuit breakers. The bus bar offers electrical ratings of 80A at 600V AC/DC for 18 mm² configurations and 100A at 600V AC/DC for 25 mm² configurations. It also boasts a short circuit withstand rating of 10kA, providing robust protection.
The bus bar system offers advantages such as installation time savings, panel space savings, and reduced maintenance. It supports various power feeding methods, including Power Feed Lugs and Direct Power Feed, with current capacities up to 115A, and Power Feed Blocks up to 200A. The system is UL recognized and listed for use with Altech's R-Series, ABL's UR, V-EA, and MA Series of Manual Motor Controllers and Supplementary Protectors, as well as most popular UL 1077 supplementary protectors and UL 508 Manual Motor Controllers.
This busbar is suitable for applications requiring efficient and reliable power distribution and protection for multiple circuit breakers. Its design allows for custom cutting without losing UL approval and is line/load reversible.
The bus bar has an electrical rating of 80A/600V AC/DC for 18 mm² configurations and 100A/600V AC/DC for 25 mm² configurations.
The short circuit withstand rating is 10kA.
The busbar is made of copper and has Polyamide insulation.
The pole spacing is 1/2 pole.
The RoHS Status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH Status is REACH Unaffected.
