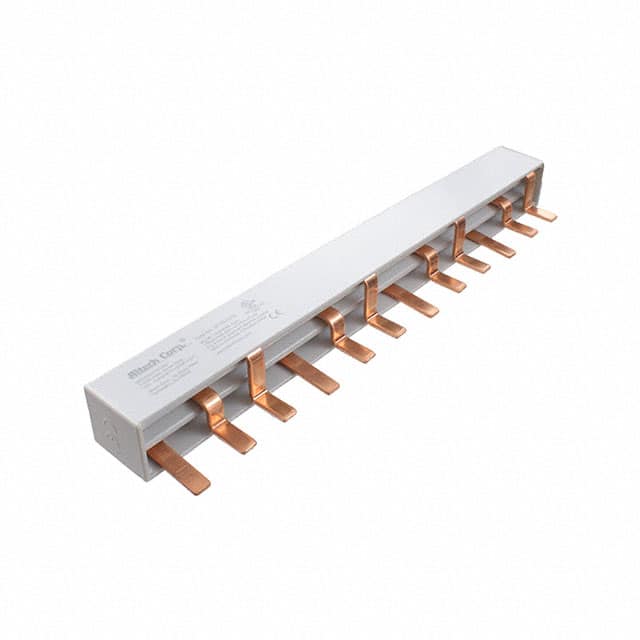

This Altech Corporation bus bar, part number 3P18U3/12, is a 12-pole, 3-phase accessory designed for use with miniature molded circuit breakers. The busbar itself is constructed from copper, providing excellent conductivity, and is housed in Polyamide insulation for durability and safety.
With electrical ratings of up to 80A/100A at 600V AC/DC and a short circuit withstand rating of 10kA, this bus bar is suitable for various power distribution applications. It is designed to simplify wiring and reduce installation time when connecting multiple circuit breakers.
The bus bar is recognized and listed for use with Altech's R-Series, ABL's UR, V-EA, and MA Series Manual Motor Controllers and Supplementary Protectors, as well as most popular UL 1077 supplementary protectors and UL 508 Manual Motor Controllers.
Key specifications include a copper busbar material, Polyamide insulation, and electrical ratings of 80A/600V AC/DC for 18mm² and 100A/600V AC/DC for 25mm² configurations. It also boasts a short circuit withstand rating of 10kA.
The bus bar has electrical ratings of 80A/600V AC/DC for 18mm² configurations and 100A/600V AC/DC for 25mm² configurations.
The short circuit withstand rating is 10kA.
The bus bar is made of copper, and the insulation material is Polyamide.
This bus bar is designed for use with miniature molded circuit breakers.
The bus bar has 12 poles.
